Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP4455605 Reciever, Hinge (left)   (Replaces: 4455605) In-Stock Immediately $ 127.70

1 WP4455606 Reciever, Hinge (right)   (Replaces: 4455606) In-Stock Immediately $ 131.74

4 W10105790 Bumper, Door Special Order $ 7.41

5 WP4448444 Grommet, Mounting Rail   (Replaces: 4448444) Special Order $ 7.85

9 W10861715 Tube, Vent   (Replaces: 4452158) Special Order $ 122.46

10 W10067870 Lens, Light Special Order $ 65.50

11 WPW10734065 Assembly, Oven Light   (Replaces: W10009930) Special Order $ 101.46

12 WP4173175 Bulb, Light   (Replaces: 4452166) In-Stock Immediately $ 53.62

14 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

14 W10130370 Frame, Front Special Order $ 79.39

15 WP4455381 Gasket, Door   (Replaces: 4455381) Special Order $ 185.61

16 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

16 4451477 Support, Insulation Appelez-nous -
17 WP8302793 Rail, Side (right)   (Replaces: 8302793) Special Order $ 154.74

17 8302794 Rail, Side (left) Special Order $ 164.19

18 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

18 WPW10195934 Latch, Motorized   (Replaces: W10195934) In-Stock Immediately $ 288.66

20 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

20 W10782197 Side, Chassis   (Replaces: 4455641) Special Order $ 150.69

21 W10161109 Back, Chassis Appelez-nous -
21 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

22 N/P Liner, Oven (not Serviceable) Appelez-nous -
23 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16

23 WPW10131825 Sensor   (Replaces: W10131825) In-Stock Immediately $ 95.83

24 4452266 Vent, Center Special Order $ 60.71

25 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

25 WP9759243 Thermostat   (Replaces: 9759243) In-Stock Immediately $ 55.44

26 4455529 Base, Chassis Appelez-nous -
26 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

27 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16

27 WP4448933 Retainer, Gasket   (Replaces: 4448933) Special Order $ 9.30

28 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

28 WP4451747 Cover, Back   (Replaces: 4451747) Special Order $ 150.07

29 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

29 4449845 Support, Bracket Appelez-nous -
NI 4450364 Insulation, Back Appelez-nous -
NI 4449315 Insulation, Wrap Special Order $ 64.81

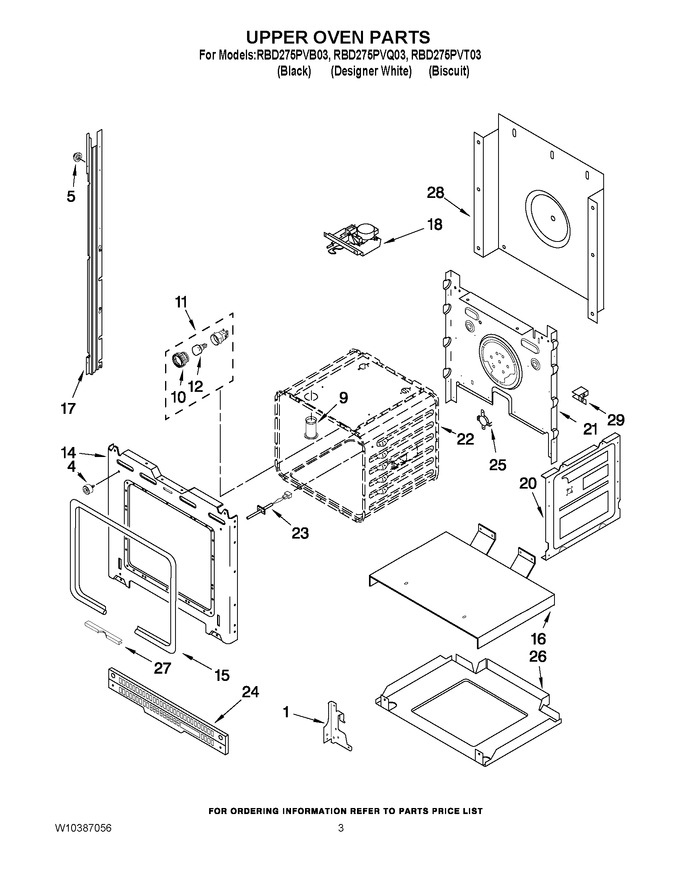

    View Diagram in Separate Window     Print Icon   Print Part List
