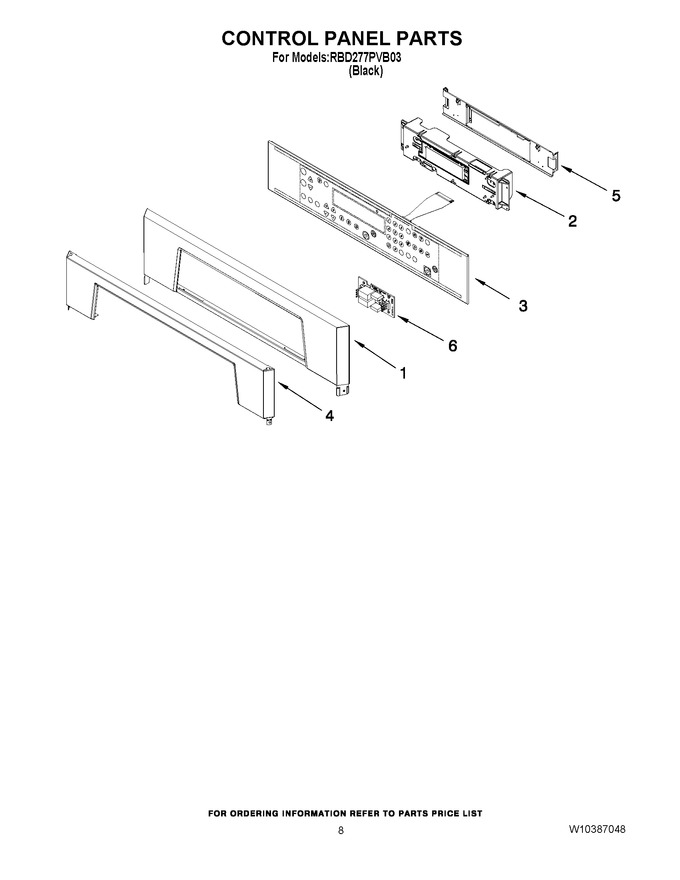

06 - Control Panel Parts


07 - Top Venting Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8302844		Panel, Control (black)				$ 119.18
2	W10340941		Assembly, Control Enclosure		Appelez-nous	-
3	W10172140		Assembly, Membrane (black)				$ 305.84
4	W10172172		Trim, Control Panel (black)				$ 27.49
5	W10222957		Backer, Control Panel		Appelez-nous	-
6	8301848		Motorized Latch Sister Board				$ 184.23
