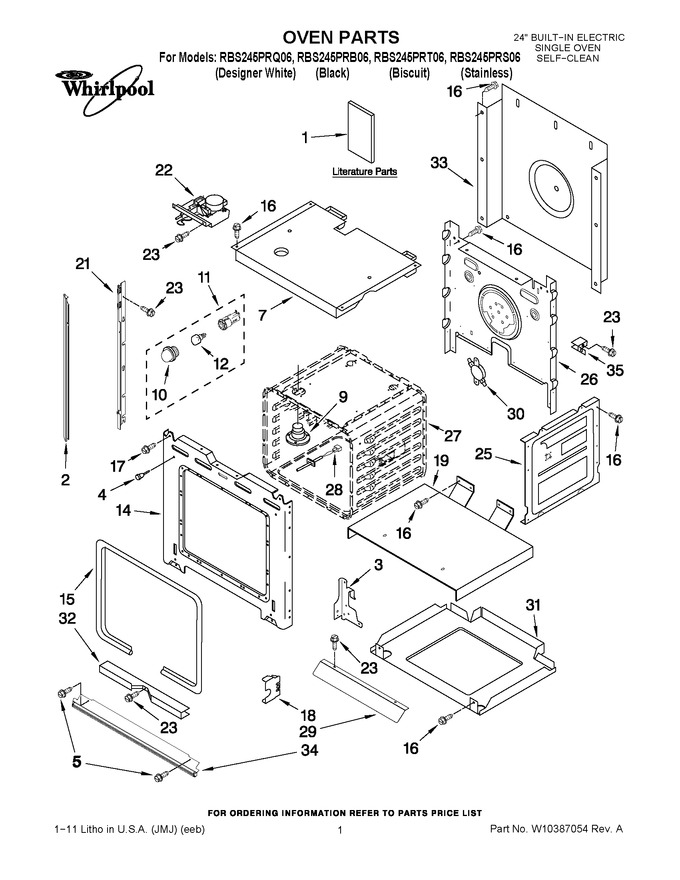

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8304571		Installation/ Undercounter		Appelez-nous	-
1	8301928		Installation, Mwo Trim Kit		Appelez-nous	-
1	9762761		Safer Cooking Tips		Appelez-nous	-
1	W10075750		Installation Instructions		Appelez-nous	-
1	W10162170		Use & Care Guide		Appelez-nous	-
1	W10343435		Tech Sheet		Appelez-nous	-
2	W10339494		Trim, Side Right (black)				$ 61.19
2	W10339495		Trim, Side Right (white)				$ 54.05
2	W10339497		Trim, Side Right (biscuit)		Appelez-nous	-
2	W10339493		Trim, Side Left (black)				$ 63.11
2	W10339496		Trim, Side Left (white)				$ 61.46
2	W10339498		Trim, Side Left (biscuit)		Appelez-nous	-
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	W10105790		Bumper, Door				$ 7.41
5	WP3400805		Screw (zinc)   (Replaces: 3400805)				$ 7.55
5	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 8.18
7	4455863		Top Chassis				$ 117.60
9	W11347848		Screw   (Replaces: 7101P376-60)				$ 14.23
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Assembly, Oven Light   (Replaces: W10009930)				$ 101.46
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	9760754		Frame, Front				$ 132.66
15	WP4455380		Gasket, Door   (Replaces: 4455380)			Immediately	$ 174.79
16	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	4452152		Bracket, Mounting Bottom Vent				$ 35.18
19	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
19	4451476		Support, Insulation		Appelez-nous	-
21	8303116		Rail, Side (left)		Appelez-nous	-
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	8303115		Rail, Side (right)				$ 164.47
22	WPW10195934		Latch, Motorized   (Replaces: W10195934)			Immediately	$ 288.66
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
26	4452232		Back, Chassis		Appelez-nous	-
27	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
28	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
29	9760675		Deflector, Vent				$ 76.62
30	WP9759243		Thermostat (tod)   (Replaces: 9759243)			Immediately	$ 55.44
31	4450525		Base, Chassis		Appelez-nous	-
32	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
33	WP4451747		Cover, Back   (Replaces: 4451747)				$ 150.07
34	W10378034		Trim, Bottom (white)		Appelez-nous	-
34	W10378011		Trim, Bottom (black)		Appelez-nous	-
34	W10378245		Trim, Bottom (biscuit)		Appelez-nous	-
35	4449845		Support, Bracket		Appelez-nous	-
NI	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 189.64
NI	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 189.22
NI	W10345262		Bracket, Oven Thermofuse				$ 35.45
