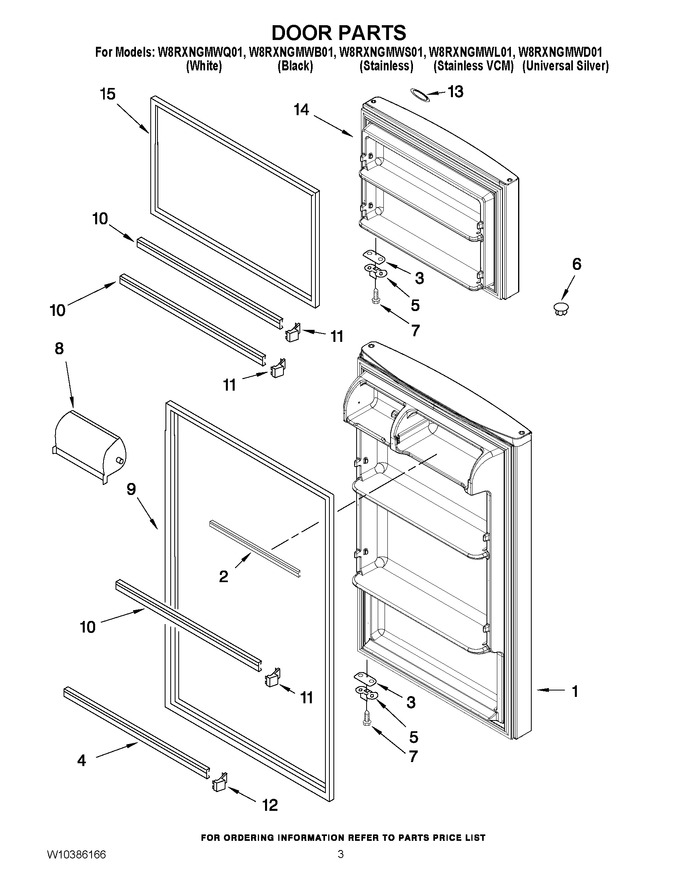

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2263252W		Refrigerator Door (includes Illus. 9 & Molded Door Handle) (white)		Appelez-nous	-
1	2265677B		Refrigerator Door (includes Illus. 9 & Molded Door Handle) (black)		Appelez-nous	-
1	W10209801		Refrigerator Door (includes Illus. 9 & Molded Door Handle) (stainless)		Appelez-nous	-
1	2265677L		Refrigerator Door (includes Illus. 9 & Molded Door Handle) (stainless Vcm)		Appelez-nous	-
1	W10130250		Refrigerator Door (includes Illus. 9 & Molded Door Handle) (universal Silver)		Appelez-nous	-
2	W11129820		Trim, Door Shelf   (Replaces: W10234242)			Immediately	$ 127.34
3	2258681B		Shim, Door Stop (black)				$ 45.33
3	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 7.55
4	WP2266738		Trim, Door   (Replaces: 2266738)				$ 111.69
5	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
6	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 8.19
6	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 24.21
7	W10276642		Screw   (Replaces: 8533904)				$ 6.41
8	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 58.76
9	WP2319264T		Door Gasket, Magnetic (mist Beige)   (Replaces: W10190032)			Immediately	$ 192.71
9	WP2319264B		Door Gasket, Magnetic (black)   (Replaces: 2264723)				$ 323.85
10	WP2266727		Trim, Door Shelf   (Replaces: 2266727)			Immediately	$ 92.50
11	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
12	WP2195916K		Endcap, Trim   (Replaces: 2195916)			Immediately	$ 13.18
13	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 93.18
14	2263251W		Freezer Door (includes Llus. 16 & Molded Door Handle) (white)		Appelez-nous	-
14	2265678B		Freezer Door (includes Illus. 16 & Molded Door Handle) (black)		Appelez-nous	-
14	W10209802		Freezer Door (includes Illus. 16 & Molded Door Handle) (stainless)		Appelez-nous	-
14	2265678L		Freezer Door (includes Illus. 16 & Molded Door Handle) (stainless Vcm)		Appelez-nous	-
14	W10130249		Freezer Door (includes Illus. 16 & Molded Door Handle) (universal Silver)		Appelez-nous	-
15	WP2319263B		Door Gasket, Magnetic (black)   (Replaces: 2264722)			Immediately	$ 268.28
15	WP2319263T		Door Gasket, Magnetic (mist Beige)   (Replaces: W10190031)			Immediately	$ 169.53
