View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

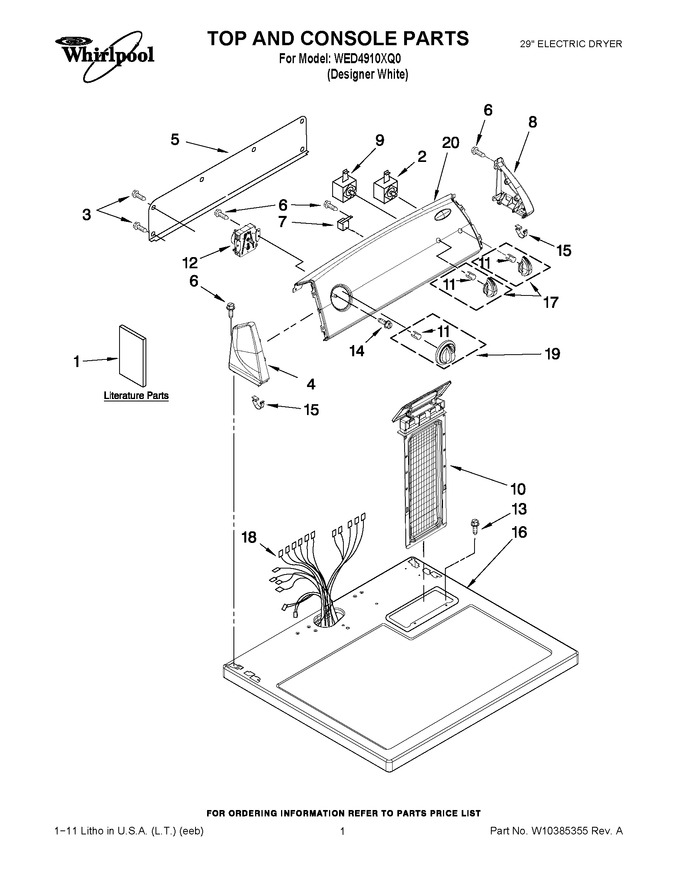

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10096987 | Instructions, Installation |
|
- | |||||
| 1 | W10185985 | Wiring Diagram |
|
- | |||||
| 1 | W10096986 | Use & Care Guide |
|
- | |||||
| 2 | WPW10117655 | Switch, Push-to-start (Replaces: W10117655) |
|
Immediately | $ 77.04 | ||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | WP8565957 | Cap, End (l.h.) (Replaces: 8566035) |
|
$ 58.28 | |||||
| 5 | W10103406 | Panel, Rear Console |
|
$ 121.78 | |||||
| 6 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3348629) |
|
Immediately | $ 7.43 | ||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 8 | WP8565954 | Cap, End (r.h.) (Replaces: 8566032) |
|
$ 59.26 | |||||
| 9 | WP3399639 | Switch, Temperature (Replaces: 3399639) |
|
Immediately | $ 118.04 | ||||
| 10 | W11778253 | Screen, Lint (Replaces: 8557857) |
|
Immediately | $ 49.17 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 12 | WPW10185982 | Timer, 60 Hz. (Replaces: W10185982) |
|
Immediately | $ 170.80 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | W10850756 | Screw, Grounding (Replaces: 8533974) |
|
$ 7.38 | |||||
| 15 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 16 | WP8563663 | Top (Replaces: 8559800) |
|
Immediately | $ 314.33 | ||||
| 17 | W10034380 | Knob, Control |
|
$ 25.06 | |||||
| 18 | W10740200 | Harness, Wiring (Replaces: W10186095) |
|
- | |||||
| 19 | W10034750 | Timer Knob Assembly |
|
$ 28.27 | |||||
| 20 | W10115387 | Control Panel & Bracket Assembly |
|
- |
