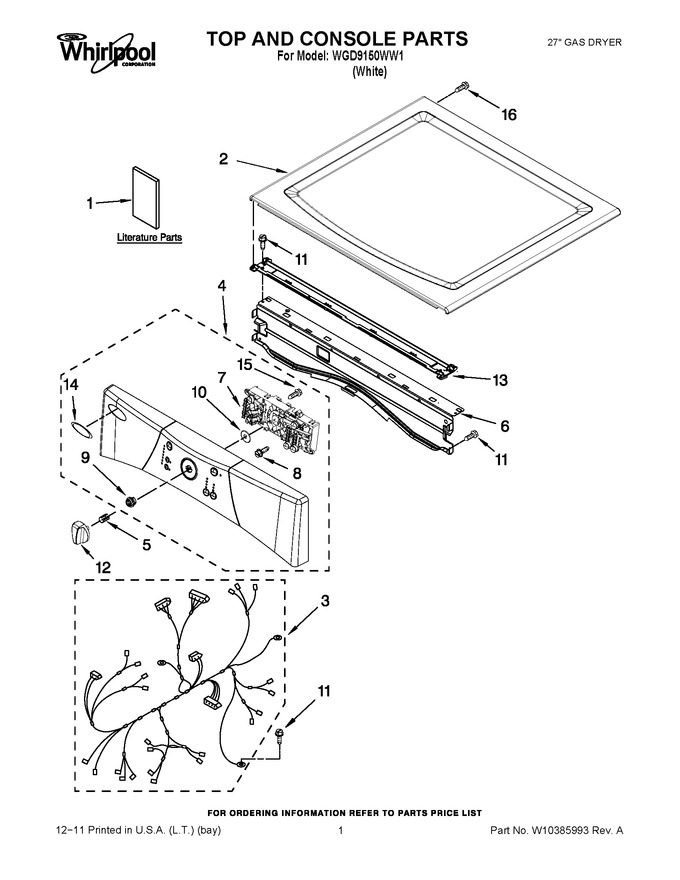

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10270752		Use & Care Guide		Appelez-nous	-
1	W10340328		Tech Sheet		Appelez-nous	-
1	W10240584		Installation Instructions		Appelez-nous	-
2	WPW10336080		Top   (Replaces: W10336080)				$ 331.99
3	W10251443		Harness, Main				$ 304.56
4	W10215747		Panel, Console				$ 244.73
5	W10153920		Spring, Knob		Appelez-nous	-
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 189.77
7	W10247234		Assembly, User Interface				$ 244.08
8	W10006580		Screw, M3-1.12 X12		Appelez-nous	-
9	W10215835		Bushing, Knob Shaft				$ 30.38
10	8572039		Seal, User Interface		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
12	WPW10236098		Knob (includes, Item. 12 )   (Replaces: W10236098)				$ 61.27
13	WPW10266747		Channel, Water   (Replaces: W10266747)				$ 73.96
14	W10117943		Badge Assembly		Appelez-nous	-
15	3400238		Screw, 2-28 X 1/2				$ 12.03
16	3400238		Screw, 2-28 X 1/2				$ 12.03
