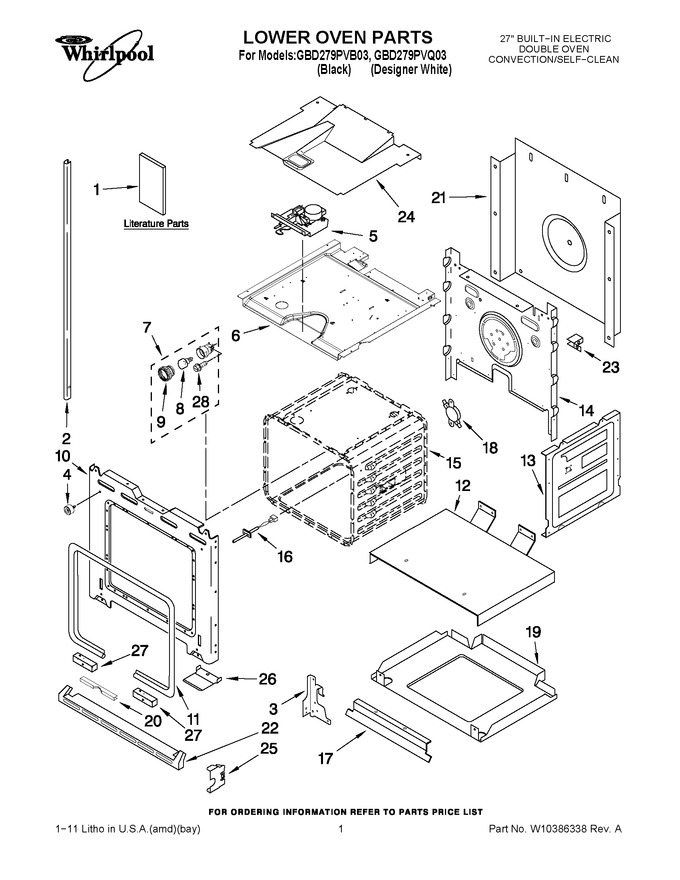

01 - Lower Oven Parts


02 - Upper Oven Parts


03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10192049		Installation Instructions		Appelez-nous	-
1	W10075750		Installation Inst.(bi-lingual)		Appelez-nous	-
1	4457288		Inst.insert		Appelez-nous	-
1	W10192042		Use & Care Guide		Appelez-nous	-
1	W10185219		Tech Sheet		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
2	W10339499		Trim, Side Right (black)				$ 90.94
2	WPW10339502		Trim, Side Left (white)   (Replaces: W10339502)				$ 128.76
2	WPW10339500		Trim, Side Left (black)   (Replaces: W10339500)				$ 204.80
2	W10339501		Trim, Side Right (white)				$ 93.26
3	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	W10105790		Bumper, Door				$ 7.41
5	WPW10195934		Latch, Motorized   (Replaces: W10195934)			Immediately	$ 288.66
6	4455864		Top, Chassis				$ 22.85
7	WPW10307114		Assembly, Oven Light   (Replaces: W10307114)			Immediately	$ 116.01
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
9	W10169756		Lens, Light				$ 42.19
10	W10130370		Frame, Front				$ 79.39
11	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 185.61
12	4451477		Support, Insulation		Appelez-nous	-
13	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
14	W10161109		Back, Chassis		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
17	9760676		Deflector, Vent		Appelez-nous	-
18	WP9759242		Fuse, Thermal   (Replaces: 9759242)			Immediately	$ 85.57
19	4455529		Base, Chassis		Appelez-nous	-
20	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
21	WP4451747		Cover, Back   (Replaces: 4451747)				$ 150.07
22	W10207687		Trim, Bottom Vent (white)				$ 66.47
22	W10207684		Trim, Bottom Vent (black)				$ 65.77
23	4449845		Support, Bracket		Appelez-nous	-
24	8302348		Divider, Center Vent		Appelez-nous	-
25	4452152		Bracket, Mounting Bottom Vent Trim				$ 35.18
26	4455807		Vent, Deflector (black)		Appelez-nous	-
26	W10145009		Vent, Deflector (white)				$ 81.61
27	4452490		Spacer, Foam				$ 34.83
28	4449748		Screw				$ 14.23
NI	4449315		Insulation, Wrap				$ 64.81
NI	4450364		Insulation, Back		Appelez-nous	-
