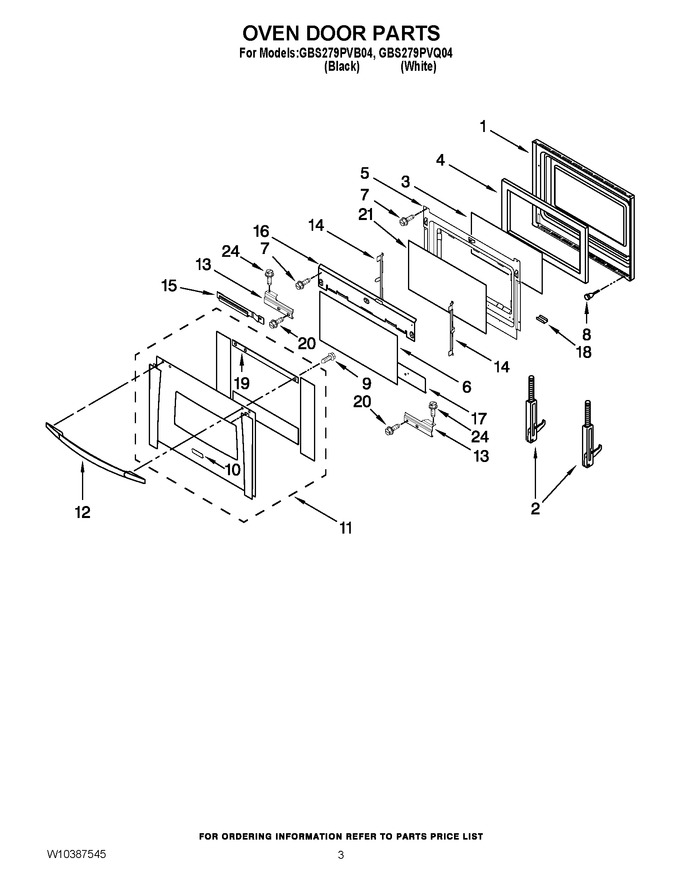

02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303699		Panel, Door				$ 128.78
2	WP9760571		Hinge, Door (right)   (Replaces: 9760571)			Immediately	$ 114.51
2	WP9760572		Hinge, Door (left)   (Replaces: 9760572)				$ 111.96
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 168.61
4	4451721		Insulation, Door				$ 37.62
5	4457131		Retainer, Glass				$ 31.95
6	9759224		Glass, Inner				$ 81.28
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
8	4448520		Bumper, Door				$ 22.25
9	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
10	W10175320		Nameplate				$ 41.71
11	W10200757		Assembly, Door Glass (black)				$ 124.66
11	W10200758		Assembly, Door Glass (white)		Appelez-nous	-
12	W10169804		Door Handle (white)				$ 71.46
12	W10169802		Door Handle (black)				$ 124.28
13	4455804		Bracket, Handle (left)				$ 25.95
13	4455803		Bracket, Handle (right)				$ 30.70
14	WP9759229		Bracket(2nd Glass)   (Replaces: 9759229)				$ 187.50
15	9759230		Bracket(3rd Glass)				$ 36.30
16	4457102		Shield, Top Heat				$ 31.70
17	4457113		Shield, Bottom Heat				$ 33.29
18	W10318998		Clip, Retainer (black)		Appelez-nous	-
18	W10318997		Clip, Retainer (white)		Appelez-nous	-
19	4452325		Seal, Pano				$ 32.70
20	W11690596		Screw   (Replaces: W10284411)				$ 23.31
21	9759227		Inner, Glass				$ 81.36
24	W10214562		Screw		Appelez-nous	-
