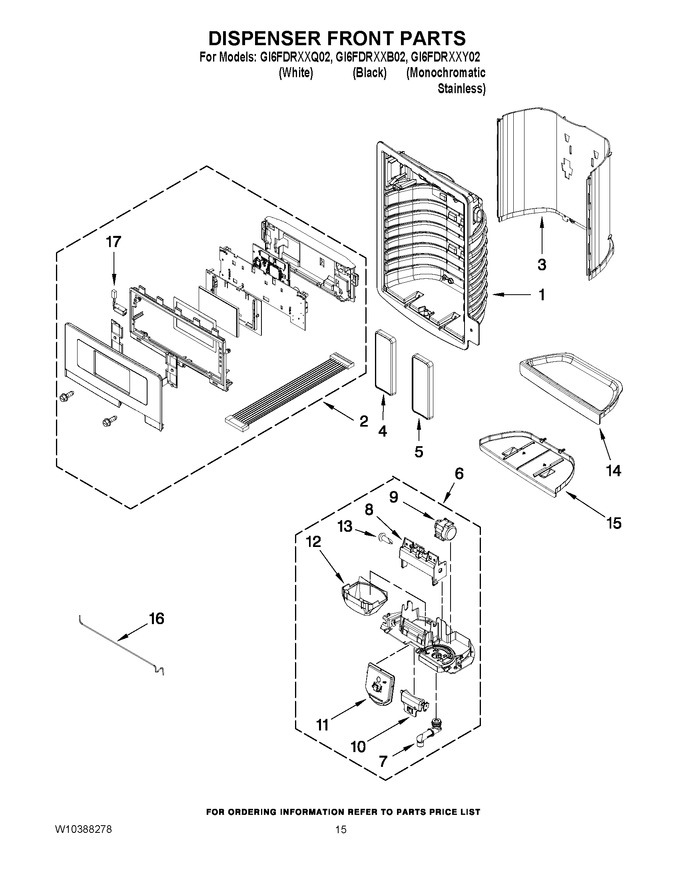

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W11184112 | Ui Assembly (Replaces: W10337911) |
|
$ 406.73 | |||||
| 3 | W11045978 | False, Wall, Dispenser (stainless) (Replaces: W10299897) |
|
$ 90.33 | |||||
| 3 | W11045975 | False Wall, Dispenser (white) (Replaces: W10215699) |
|
- | |||||
| 3 | W11045976 | False Wall, Dispenser (black) (Replaces: W10233560) |
|
$ 43.18 | |||||
| 4 | WPW10368730 | Pad, Ice (stainless) (Replaces: W10334801) |
|
Immediately | $ 319.47 | ||||
| 4 | W10368729 | Pad, Ice (black) (Replaces: W10334798) |
|
$ 308.78 | |||||
| 4 | W10334795 | Pad, Ice (white) |
|
- | |||||
| 5 | WPW10368730 | Pad, Water (stainless) (Replaces: W10334825) |
|
Immediately | $ 319.47 | ||||
| 5 | W10368729 | Pad, Water (black) (Replaces: W10334822) |
|
$ 308.78 | |||||
| 5 | W10334819 | Pad, Water (white) |
|
- | |||||
| 6 | WPW10353552 | Separator Assy. (Replaces: W10353552) |
|
$ 166.29 | |||||
| 7 | W11227371 | Spigot (Replaces: 2316647) |
|
$ 136.38 | |||||
| 8 | W10174827 | Bracket, Ice Door |
|
$ 76.42 | |||||
| 9 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 107.60 | ||||
| 10 | W10499850 | Support, Ice Door (Replaces: W10174809) |
|
$ 104.67 | |||||
| 11 | W10346235 | Door, Ice (Replaces: W10174811) |
|
$ 170.32 | |||||
| 12 | W10499850 | Guide, Ice (Replaces: W10174808) |
|
$ 104.67 | |||||
| 13 | W10174818 | Screw |
|
- | |||||
| 14 | W11045970 | Tray, Dispenser (white) (Replaces: W10267869) |
|
$ 65.93 | |||||
| 14 | W11192301 | Tray, Dispenser (stainless) (Replaces: W10299895) |
|
$ 65.82 | |||||
| 14 | W11045971 | Tray, Dispenser (black) (Replaces: W10267870) |
|
$ 65.90 | |||||
| 15 | WPW10267863 | Slide Tray, Dispenser (stainless) (Replaces: W10267863) |
|
$ 73.22 | |||||
| 15 | W10267860 | Slide, Tray Dispenser (white) |
|
- | |||||
| 15 | W10267861 | Slide, Tray Dispenser (black) |
|
$ 74.39 | |||||
| 16 | W10296451 | Tube, Water |
|
$ 53.54 | |||||
| 17 | W11290115 | Led (Replaces: W10238083) |
|
$ 84.45 |
