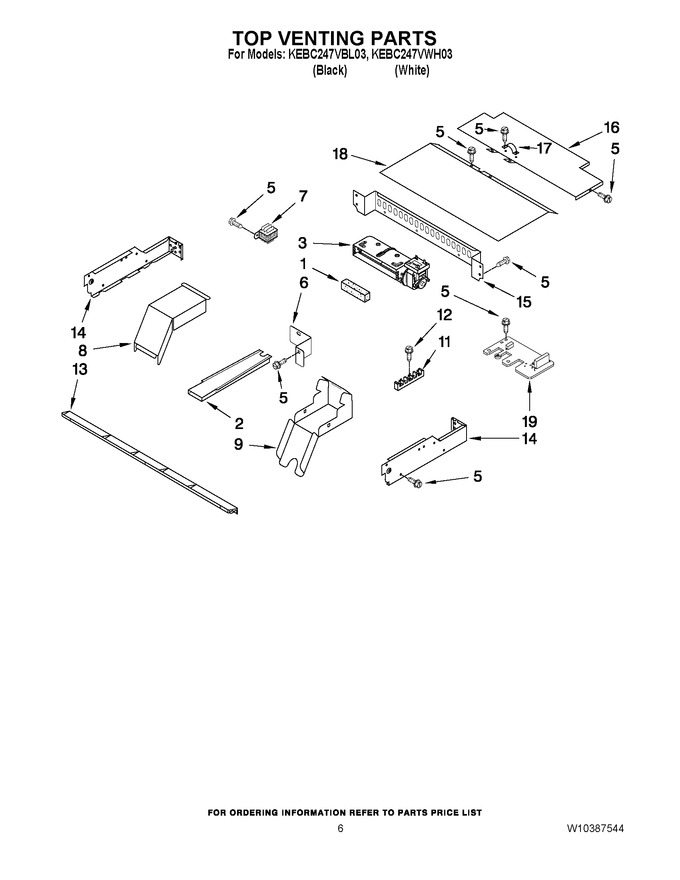

05 - Top Venting Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10491987 | Foam, Block (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 2 | 4451759 | Vent, Exhaust |
|
$ 105.01 | |||||
| 3 | WPW10016550 | Blower (lower Oven 45mm) (Replaces: W10016550) |
|
Immediately | $ 283.63 | ||||
| 3 | WPW10176670 | Blower (upper Oven 65mm) (Replaces: W10176670) |
|
Immediately | $ 263.76 | ||||
| 5 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 6 | 8302390 | Bracket, Support (air Stop) |
|
- | |||||
| 7 | 9760587 | Transformer |
|
$ 112.69 | |||||
| 8 | 4455178 | Elbow, Vent Top |
|
$ 15.52 | |||||
| 9 | 4455177 | Elbow, Vent Bottom |
|
$ 11.39 | |||||
| 11 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 35.17 | ||||
| 12 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 13 | 4448547 | Vent, (control Panel) |
|
$ 111.10 | |||||
| 14 | W10790240 | Side, Control Top (left) (Replaces: 4451598) |
|
$ 78.41 | |||||
| 14 | W10755214 | Side, Control Top (right) (Replaces: 4451597) |
|
- | |||||
| 15 | 9759135 | Back, Control |
|
- | |||||
| 16 | 4450549 | Cover, Top Rear |
|
- | |||||
| 17 | 4448664 | Clamp |
|
$ 21.41 | |||||
| 18 | 4452365 | Cover, Top Front |
|
- | |||||
| 19 | WP4451985 | Suppressor (Replaces: 4451985) |
|
$ 173.47 |
