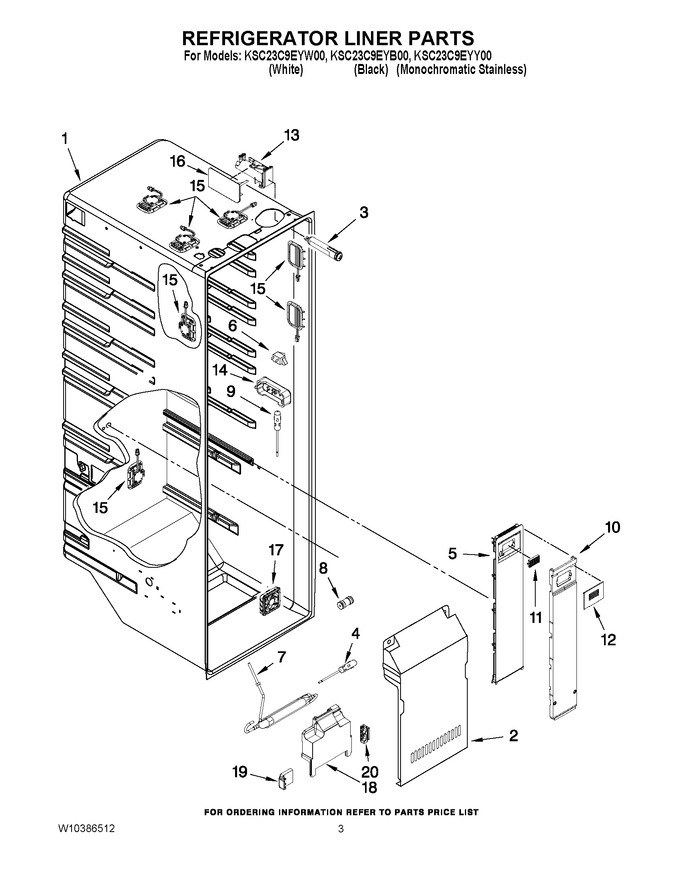

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10859809 | Cover, Evap (Replaces: W10251454) |
|
$ 263.42 | |||||
| 3 | EDR1RXD1B | Water Filter (Replaces: W10295370) |
|
Immediately | $ 49.99 | ||||
| 4 | W10316760 | Thermistor, Evap Fan (Replaces: W10323459) |
|
Immediately | $ 72.91 | ||||
| 5 | W10356327 | Cover, Air Tower |
|
- | |||||
| 6 | W11384469 | Switch Rocker Arm (Replaces: C3680314) |
|
Immediately | $ 39.09 | ||||
| 7 | W11204869 | Reservoir (Replaces: W10279843) |
|
$ 167.67 | |||||
| 8 | WP2300868 | Connector (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 9 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 33.60 | ||||
| 10 | W10156707 | Tower, Air |
|
$ 95.50 | |||||
| 11 | W10311524 | Air Filter (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 12 | W10341548 | Air Filter Cover |
|
$ 80.75 | |||||
| 13 | WPW10341545 | Housing, Water Filter (Replaces: W10341545) |
|
Immediately | $ 221.37 | ||||
| 14 | W10356635 | Cover, Thermistor |
|
$ 19.22 | |||||
| 15 | W11683241 | Led Light Assy (Replaces: W10279030) |
|
Immediately | $ 271.97 | ||||
| 16 | W10300484 | Cover, Water Filter |
|
$ 129.99 | |||||
| 17 | WPW10439624 | Fan Assy, Evap (Replaces: W10260460) |
|
Immediately | $ 338.17 | ||||
| 18 | WPW10453428 | Evap Insulation, W/fan Assy (Replaces: W10260458) |
|
$ 276.56 | |||||
| 19 | W11028224 | Support, Evap Lh (Replaces: W10223366) |
|
$ 11.98 | |||||
| 20 | W10837626 | Support, Evap Rh (Replaces: W10223364) |
|
$ 75.86 |
