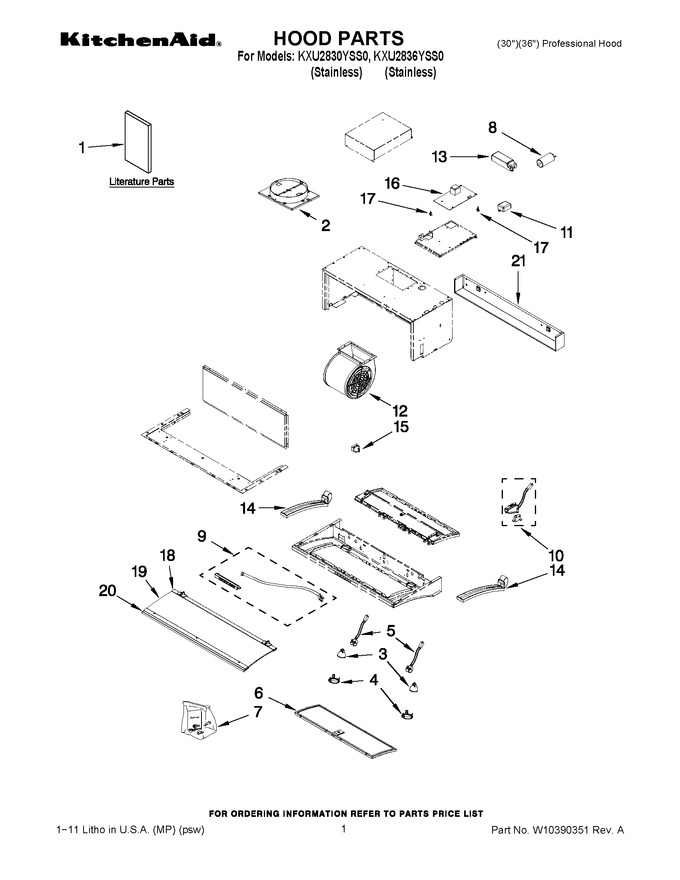

01 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10342488		Use & Care Guide		Appelez-nous	-
2	W10706422		Damper Assembly   (Replaces: W10369162)				$ 331.17
3	WPW10252088		Lamp, Halogen   (Replaces: W10369197)			Immediately	$ 114.94
4	W10369165		Light Bezel				$ 21.25
5	W10369166		Lamp Holder (with Wiring)				$ 63.66
6	WPW10369163		Grease Filter   (Replaces: W10369163)				$ 233.43
7	W10369160		Hardware, Install				$ 134.85
8	W10256657		Capacitor			Immediately	$ 94.37
9	W10369418		Display & Wire				$ 85.48
10	W10382895		Micro Switch (with Wiring)				$ 74.18
11	W10369194		Noise Filter			Immediately	$ 226.17
12	W10382894		Fan Assembly				$ 340.13
13	W11186486		Transformer   (Replaces: 8186686)			Immediately	$ 229.15
14	W10369365		Guide Slides (pair)				$ 130.02
15	W10369202		Support Glass Glides				$ 31.99
16	W10369412		Electronic Cntrl				$ 313.70
17	8190833		Support, Electronic Cntrl				$ 7.46
18	W10369367		Molding, Inside Glass (back) (30``)				$ 166.44
18	W10369385		Molding, Inside Glass (back) (36``)		Appelez-nous	-
19	WPW10369366		Sliding Glass (30``)   (Replaces: W10369366)				$ 299.95
19	WPW10369389		Sliding Glass (36``)   (Replaces: W10369389)				$ 289.07
20	W10369357		Molding, Inside Glass (front) (30``)				$ 191.38
20	W10369397		Molding, Inside Glass (front) (36``)				$ 135.96
21	W10369364		Housing Control (30``)		Appelez-nous	-
21	W10369398		Housing Control (36``)		Appelez-nous	-
NI	W10356918		Recirculation Kit				$ 165.14
NI	W10356922		Charcoal Filter Replacements				$ 129.53
