View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

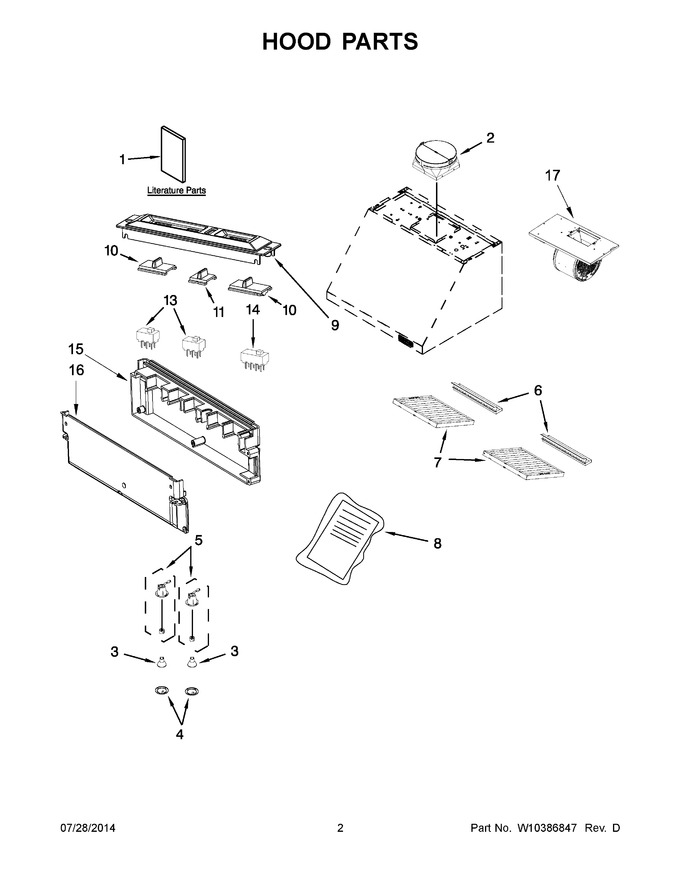

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10331007 | Use & Care Guide |
|
- | |||||
| 2 | W11156393 | Assembly, Damper (Replaces: W10351926) |
|
$ 214.28 | |||||
| 3 | WPW10291579 | Bulb, Light (Replaces: W10291579) |
|
Immediately | $ 206.90 | ||||
| 4 | W10351924 | Bezel, Lamp |
|
$ 197.59 | |||||
| 5 | WPW10370558 | Socket, Light (Replaces: W10370558) |
|
$ 87.43 | |||||
| 6 | W10294003 | Tray, Grease (30" Model Only) |
|
$ 332.94 | |||||
| 7 | W10351890 | Filter, Grease (30" Model Only) |
|
$ 117.92 | |||||
| 8 | W10351930 | Hardware, Install |
|
$ 73.13 | |||||
| 9 | W11387938 | Panel, Switch (Replaces: W10370649) |
|
Immediately | $ 167.51 | ||||
| 10 | W11569415 | Switch, Slide (Replaces: W10370625) |
|
Immediately | $ 30.31 | ||||
| 11 | W11662407 | Switch, Slider (Replaces: W10351911) |
|
Immediately | $ 42.32 | ||||
| 13 | W10853393 | Switch, Rocker (motor) (Replaces: W10351916) |
|
Immediately | $ 230.38 | ||||
| 14 | W11193832 | Switch, Rocker (on/off) (Replaces: W10351915) |
|
$ 215.60 | |||||
| 15 | W10721964 | Housing, Switch |
|
$ 174.77 | |||||
| 16 | W10721963 | Cover, Switch Housing |
|
$ 131.24 | |||||
| 17 | N/P | Motor, Blower (not Included, See Accessories) |
|
- | |||||
| 6A | W10294011 | Tray, Grease (36" Model Only) |
|
$ 319.82 | |||||
| 6B | W10294022 | Tray, Grease (48" Model Only) |
|
$ 353.88 | |||||
| 7A | W10351892 | Filter, Grease (36" Model Only) |
|
$ 269.64 | |||||
| 7B | WPW10351929 | Filter, Grease (48" Model Only) (Replaces: W10351929) |
|
$ 209.91 | |||||
| NI | W10352735 | Accessories, Kit, Backsplash (36" Without Shelf) |
|
$ 727.94 | |||||
| NI | W10352736 | Accessories, Kit, Backsplash (48" Without Shelf) |
|
$ 621.74 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11636054 | Accessories, 600 Cfm Internal Blower Motor (Replaces: W10294006) |
|
$ 827.59 | |||||
| NI | W11499036 | Accessories, 1200 Cfm Internal Blower Motor (Replaces: W10294026) |
|
Immediately | $ 874.19 | ||||
| NI | W10272079 | Accessories, Cover, Duct (30" Model Only) |
|
$ 235.53 | |||||
| NI | W10272080 | Accessories, Cover, Duct (36" Model Only) |
|
$ 330.36 | |||||
| NI | W10272081 | Accessories, Cover, Duct (48" Model Only) |
|
$ 354.78 | |||||
| NI | W10285447 | Accessories, Kit, Backsplash (30" With Shelves) |
|
$ 498.30 | |||||
| NI | W10285448 | Accessories, Kit, Backsplash (36" With Shelves) |
|
Immediately | $ 463.93 | ||||
| NI | W10285449 | Accessories, Kit, Backsplash (48" With Shelves) |
|
$ 525.67 | |||||
| NI | WPW10225950 | Accessories, Kit, Backsplash (30" With Solid Shelf) (Replaces: W10225950) |
|
$ 1,790.27 | |||||
| NI | W10225949 | Accessories, Kit, Backsplash (36" With Solid Shelf) |
|
$ 2,040.91 | |||||
| NI | W10225948 | Accessories, Kit, Backsplash (48" With Solid Shelf) |
|
- | |||||
| NI | W10352734 | Accessories, Kit, Backsplash (30" Without Shelf) |
|
$ 555.19 |
