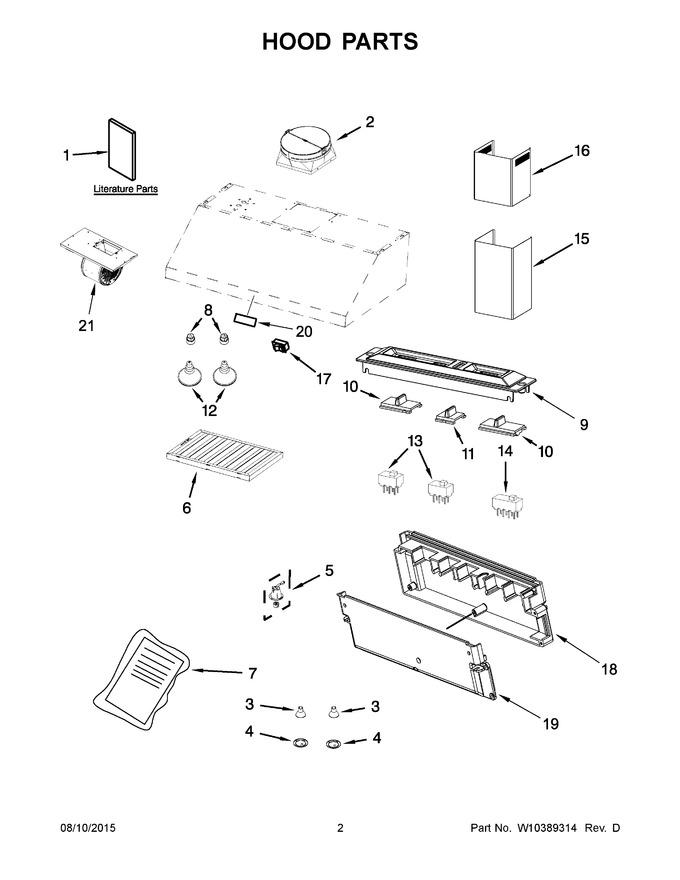

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10331009 | Use & Care Guide |
|
- | |||||
| 2 | W11156393 | Assembly, Damper (Replaces: W10351926) |
|
$ 214.28 | |||||
| 3 | WPW10291579 | Bulb, Light (Replaces: W10291579) |
|
Immediately | $ 206.90 | ||||
| 4 | W10351924 | Bezel, Lamp |
|
$ 197.59 | |||||
| 5 | WPW10370558 | Socket, Light (Replaces: W10370558) |
|
$ 87.43 | |||||
| 6 | W10351890 | Filter, Grease |
|
$ 117.92 | |||||
| 7 | W11565654 | Hardware, Install (Replaces: W10351931) |
|
$ 234.63 | |||||
| 8 | W10294008 | Socket, Ir Lamp |
|
$ 84.36 | |||||
| 9 | W11387938 | Panel, Switch (Replaces: W10370649) |
|
Immediately | $ 148.80 | ||||
| 10 | W11569415 | Switch, Slide (Replaces: W10370625) |
|
Immediately | $ 30.31 | ||||
| 11 | W11662407 | Switch, Slider (Replaces: W10351911) |
|
Immediately | $ 42.32 | ||||
| 12 | WPW10294005 | Lamp, Ir (Replaces: W10294005) |
|
Immediately | $ 296.71 | ||||
| 13 | W10853393 | Switch, Rocker (motor) (Replaces: W10351916) |
|
Immediately | $ 205.37 | ||||
| 14 | W11193832 | Switch, Rocker (on/off) (Replaces: W10351915) |
|
$ 215.60 | |||||
| 15 | WPW10351932 | Cover, Lower Duct (Replaces: W10351932) |
|
$ 384.31 | |||||
| 16 | W11417439 | Cover, Upper Duct (Replaces: W10351933) |
|
$ 439.79 | |||||
| 17 | W10351934 | Switch, (on/off) |
|
$ 73.64 | |||||
| 18 | W10721964 | Housing, Switch |
|
$ 174.77 | |||||
| 19 | W10721963 | Cover, Switch Housing |
|
$ 131.24 | |||||
| 20 | WPW10243391 | Badge (grey) (Replaces: W10243391) |
|
$ 58.31 | |||||
| 21 | N/P | Motor, Blower (not Included, See Accessories) |
|
- | |||||
| NI | W11499036 | Accessories, 1200 Cfm Internal Blower Motor Backsplash (Replaces: W10294026) |
|
Immediately | $ 874.19 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10352733 | Accessories, Chimney Extension Kit |
|
$ 1,426.12 | |||||
| NI | W11636054 | Accessories, 600 Cfm Internal Blower Motor (Replaces: W10294006) |
|
$ 827.59 | |||||
| NI | W10352735 | Accessories, 36" Without Shelf |
|
$ 727.94 | |||||
| NI | W10352736 | Accessories, 48" Without Shelf |
|
$ 621.74 | |||||
| NI | W10225949 | Accessories, 36" With Solid Shelf |
|
$ 2,040.91 | |||||
| NI | W10225948 | Accessories, 48" With Solid Shelf |
|
- | |||||
| NI | W10285448 | Accessories, 36" With Shelves |
|
Immediately | $ 463.93 | ||||
| NI | W10285449 | Accessories, 48" With Shelves |
|
$ 525.67 |
