| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WPW10359271 |
 |
Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
|
Immediately |
$ 62.21 |
|
|
| 2 |
WP90767 |
 |
Screw (Replaces: 90767) |
|
|
Immediately |
$ 8.25 |
|
|
| 3 |
WP681414 |
 |
Screw (Replaces: 343641) |
|
|
Immediately |
$ 8.47 |
|
|
| 4 |
W11222846 |
 |
Door, Lint Screen (Replaces: 3394984) |
|
|
Immediately |
$ 213.91 |
|
|
| 5 |
WP3387911 |
 |
Assembly, Air Duct (Replaces: 697354) |
|
|
|
$ 327.31 |
|
|
| 6 |
WP697813 |
 |
Seal, Outlet Housing (Replaces: 697813) |
|
|
Immediately |
$ 8.37 |
|
|
| 7 |
WP3391906 |
|
Seal, Lint Duct (Replaces: 3391906) |
|
|
|
$ 9.02 |
|
|
| 8 |
W11812294 |
|
Nut, Hex (Replaces: 3934666) |
|
|
|
$ 12.77 |
|
|
| 9 |
8066086 |
|
Plug, Drum Hole |
|
|
|
$ 11.29 |
|
|
| 10 |
279982 |
 |
Baffle, Drum (Replaces: 3389449) |
|
|
|
$ 248.21 |
|
|
| 11 |
WP8563748 |
|
Pipe, Exhaust (Replaces: 8563748) |
|
|
|
$ 13.55 |
|
|
| 12 |
WP488729 |
 |
Screw (Replaces: 3390647) |
|
|
Immediately |
$ 8.28 |
|
|
| 13 |
WP697770 |
 |
Seal, Transition Duct To Lint Duct (Replaces: 3391685) |
|
|
Immediately |
$ 8.27 |
|
|
| 14 |
WP3387749 |
 |
Element, Heater (Replaces: 3387749) |
|
|
Immediately |
$ 328.58 |
|
|
| 15 |
279457 |
 |
Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
|
Immediately |
$ 7.92 |
|
|
| 16 |
WPW10080190 |
 |
Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
|
Immediately |
$ 10.01 |
|
|
| 17 |
W11299300 |
|
Bulkhead, Rear (Replaces: 3387809) |
|
|
|
$ 367.62 |
|
|
| 18 |
W11236646 |
 |
Washer (Replaces: 3387459) |
|
|
Immediately |
$ 14.73 |
|
|
| 19 |
WPW10359272 |
 |
Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
|
Immediately |
$ 58.48 |
|
|
| 20 |
WPW10512946 |
 |
Washer, Tri Ring (Replaces: W10512946) |
|
|
Immediately |
$ 9.68 |
|
|
| 21 |
WPW10314173 |
 |
Roller, Support (Replaces: W10314171) |
|
|
Immediately |
$ 28.50 |
|
|
| 22 |
WP308685 |
 |
Screw (Replaces: 3357011) |
|
|
Immediately |
$ 7.87 |
|
|
| 23 |
W11129408 |
 |
Assembly, Outlet Housing (Replaces: 3394985) |
|
|
Immediately |
$ 56.89 |
|
|
| 24 |
WP488729 |
|
Screw (Replaces: 695240) |
|
|
Immediately |
$ 8.28 |
|
|
| 25 |
W10518375 |
 |
Assembly, Drum (Replaces: 3389448) |
|
|
|
$ 468.38 |
|
|
| 26 |
W10853898 |
|
Screw (Replaces: W10219342) |
|
|
Immediately |
$ 8.18 |
|
|
| 27 |
280114 |
 |
Seal, Drum Front (Replaces: W10166807) |
|
|
Immediately |
$ 70.82 |
|
|
| 28 |
WP3387230 |
 |
Screw (Replaces: 3387230) |
|
|
Immediately |
$ 8.54 |
|
|
| 29 |
WP697557 |
|
Bulkhead, Front (Replaces: 697557) |
|
|
|
$ 218.43 |
|
|
| 30 |
W11086603 |
 |
Grille, Outlet (Replaces: 8299979) |
|
|
Immediately |
$ 36.90 |
|
|
| 31 |
WP697770 |
|
Seal, Plate Cover (Replaces: 697770) |
|
|
Immediately |
$ 8.27 |
|
|
| 32 |
WP3389644 |
 |
Screen, Lint (Replaces: 3389644) |
|
|
Immediately |
$ 112.85 |
|
|
| 33 |
WP8566209 |
 |
Seal, Transition Duct (Replaces: 8566209) |
|
|
|
$ 58.22 |
|
|
| 34 |
WP3403607 |
 |
Thermostat 250~f (121~c) (Replaces: 3403607) |
|
|
Immediately |
$ 47.15 |
|
|
| 35 |
3390935 |
|
Clip, Duct Locator |
|
|
|
$ 13.39 |
|
|
| 36 |
3389648 |
|
Bracket, Heater Box (Replaces: 3389647) |
|
Appelez-nous
|
- |
|
|
|
| 37 |
WP697772 |
 |
Wheel, Blower (Replaces: 697772) |
|
|
Immediately |
$ 81.98 |
|
|
| 38 |
279704 |
 |
Duct, Transition (Replaces: 3389445) |
|
|
|
$ 186.88 |
|
|
| 39 |
279780 |
|
Cover Plate, Blower (Replaces: 697366) |
|
|
|
$ 97.60 |
|
|
| 40 |
WP3394986 |
 |
Spring, Lint Screen Door (Replaces: 3394986) |
|
|
|
$ 93.47 |
|
|
| 41 |
WP3390291 |
 |
Thermostat (Replaces: 3390291) |
|
|
Immediately |
$ 94.94 |
|
|
| 42 |
WP3387134 |
 |
Thermostat (Replaces: 3387134) |
|
|
Immediately |
$ 35.90 |
|
|
| 43 |
279769 |
 |
Kit, Thermal Cut-off (includes Thermostat) |
|
|
Immediately |
$ 62.85 |
|
|
| 44 |
WP8544363 |
 |
Housing, Blower (Replaces: 8544363) |
|
|
|
$ 160.26 |
|
|
| 45 |
279700 |
 |
Lint Duct Assembly (Replaces: 3388909) |
|
|
|
$ 190.24 |
|
|
| 46 |
W10802681 |
 |
Box, Heater (Replaces: 697715) |
|
|
Immediately |
$ 201.09 |
|
|
| 47 |
W10118337 |
|
Bracket, Bulkhead Mounting (Replaces: 8571651) |
|
Appelez-nous
|
- |
|
|
|
| 48 |
WP693995 |
 |
Screw (Replaces: 693995) |
|
|
Immediately |
$ 7.55 |
|
|

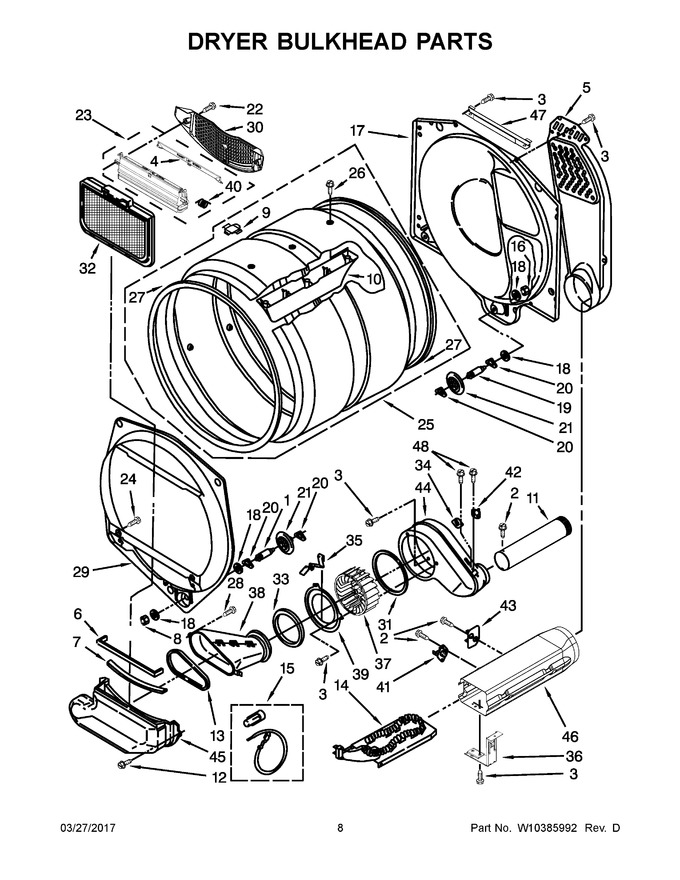

View Diagram in Separate Window
