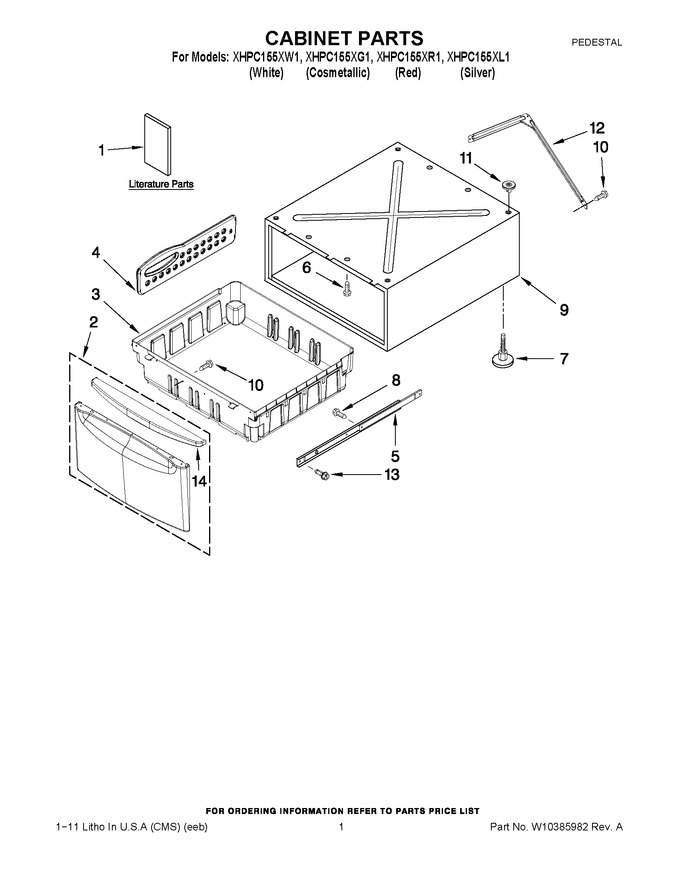

01 - Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10325308		Installation Instructions		Appelez-nous	-
2	W10103488		Drawer Front Assembly (silver)				$ 206.06
2	W10103517		Drawer Front Assembly (red)		Appelez-nous	-
2	W10103487		Drawer Front Assembly (cosmetallic)				$ 111.39
2	WPW10103454		Drawer Front Assembly (white)   (Replaces: W10103454)				$ 345.35
3	W11047790		Drawer Bin   (Replaces: W10169635)				$ 205.26
4	WPW10189999		Divider, Drawer   (Replaces: W10189999)			Immediately	$ 42.59
5	WP8578394		Slide Assembly   (Replaces: 8578394)				$ 103.07
6	WPW10346892		Screw   (Replaces: 3400111)			Immediately	$ 7.55
7	WP8563585		Foot Assembly   (Replaces: 8563585)			Immediately	$ 14.76
8	WP3388228		Screw, 6-20 X 3/8   (Replaces: 3388228)				$ 7.30
9	N/P		Cabinet (not Serviced)		Appelez-nous	-
10	WPW10213953		Screw, 8-18 X 1/2   (Replaces: W10213953)			Immediately	$ 7.55
11	WP8537982		Pad   (Replaces: 8537982)			Immediately	$ 8.69
12	WPW10169550		Brace, Rear   (Replaces: W10169550)				$ 41.10
13	WP9740849		Screw, 8-18 X 7/16   (Replaces: 9740849)				$ 7.30
14	WPW10243437		Handle, Drawer   (Replaces: W10243437)				$ 230.79
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	W10318650		Paint, Touch-up (1/2oz.) (cosmetallic)				$ 19.84
NI	W10268217		Paint, Touch-up (1/2oz.) (mercury Silver)			Immediately	$ 27.77
NI	W10363227		Paint, Touch-up (1/2oz.) (red)				$ 26.23
NI	350930		Paint, Pressurized Spray (12 Oz.) (white)			Immediately	$ 40.12
NI	72017		Paint, Touch-up (1/2oz.) (white)			Immediately	$ 12.30
