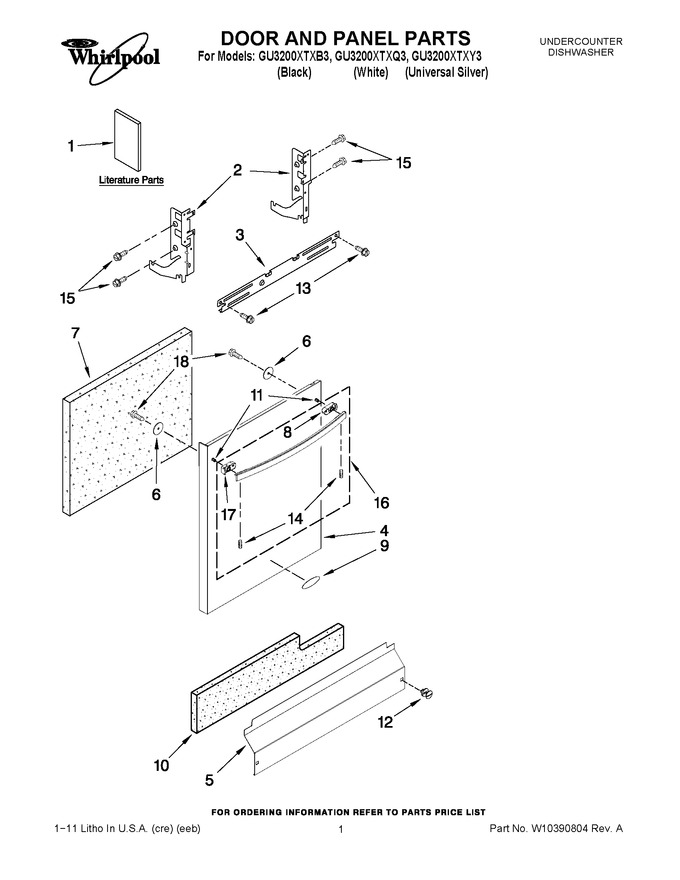

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10282549 | Instructions, Installation |
|
- | |||||
| 1 | W10340219 | Energy Guide |
|
- | |||||
| 1 | W10142781 | Guide, Use & Care English/french |
|
- | |||||
| 1 | W10142908 | Guide, Use & Care Spanish |
|
- | |||||
| 1 | W10142800 | Tech Sheet |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 2 | W11806608 | Arm, Hinge (right) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | W10142938 | Panel Front (includes Items 9, 19 & 20) (stainless) |
|
$ 170.59 | |||||
| 4 | W10142936 | Panel Front (includes Items 9, 19 & 20) (black) |
|
$ 144.56 | |||||
| 4 | W10142937 | Panel Front (includes Items 9, 19 & 20) (white) |
|
$ 139.46 | |||||
| 5 | W10827631 | Access Panel (includes Item 11) (black) (Replaces: W10369024) |
|
Immediately | $ 195.64 | ||||
| 5 | W10827632 | Access Panel (includes Item 11) (white) (Replaces: W10369025) |
|
Immediately | $ 163.70 | ||||
| 6 | W10142904 | Plate-backing |
|
$ 50.57 | |||||
| 7 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 8 | W10130962 | Endcap, Right (black) |
|
$ 53.36 | |||||
| 8 | W10131029 | Endcap, Right (white) |
|
$ 54.03 | |||||
| 8 | W10164249 | Endcap, Right (midnight Grey) |
|
$ 49.32 | |||||
| 9 | W10175320 | Name Plate |
|
$ 41.71 | |||||
| 10 | W10831329 | Insulation, (Replaces: W10073540) |
|
Immediately | $ 43.30 | ||||
| 11 | WP8564951 | Studs (Replaces: 8564951) |
|
Immediately | $ 19.33 | ||||
| 12 | WPW10503549 | Fastener (white) (Replaces: W10331793) |
|
Immediately | $ 7.77 | ||||
| 12 | WPW10503548 | Fastener (black) (Replaces: W10331789) |
|
Immediately | $ 30.39 | ||||
| 13 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 14 | WP8534008 | Screw (Replaces: 8534008) |
|
$ 9.37 | |||||
| 15 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 16 | W10142999 | Handle (black) |
|
- | |||||
| 16 | W10142998 | Handle (stainless) |
|
$ 91.71 | |||||
| 16 | W10143000 | Handle (white) |
|
- | |||||
| 17 | W10164250 | Endcap, Left (midnight Grey) |
|
$ 90.92 | |||||
| 17 | W10131028 | Endcap, Left (black) |
|
$ 37.29 | |||||
| 17 | W10131030 | Endcap, Left (white) |
|
$ 55.90 | |||||
| 18 | W10123421 | Screw |
|
$ 12.83 |
