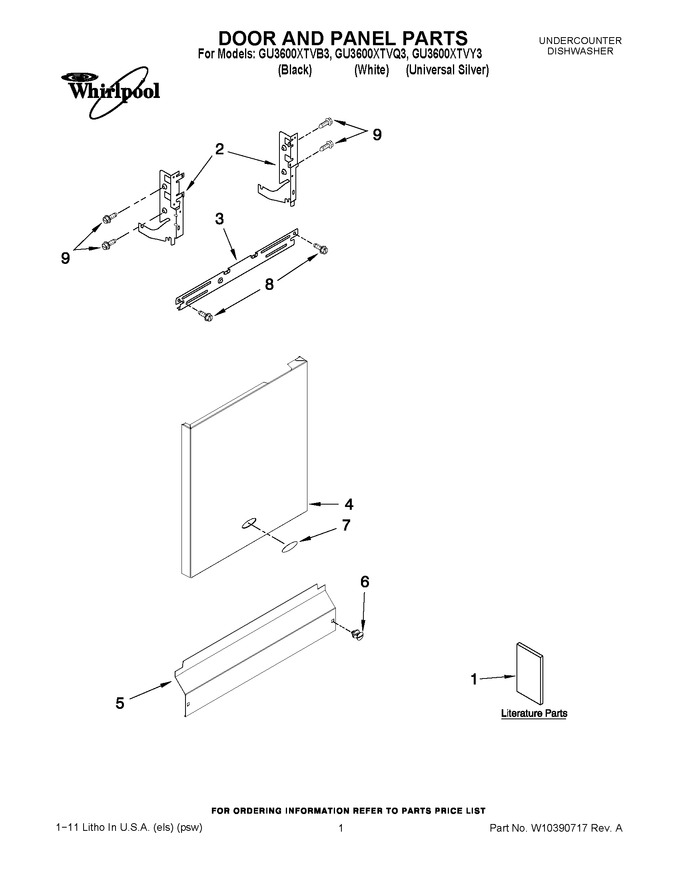

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10158347		Tech Sheet (french)		Appelez-nous	-
1	W10282549		Instructions, Installation		Appelez-nous	-
1	W10300253		Energy Guide		Appelez-nous	-
1	W10142816		Guide, Use & Care (english/french)		Appelez-nous	-
1	W10142909		Guide, Use & Care (spanish)		Appelez-nous	-
1	W10142826		Tech Sheet (english)		Appelez-nous	-
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
3	8268983		Stiffener, Door				$ 38.77
4	W10274961		Panel Front (white)				$ 126.67
4	W10274962		Panel Front (black)		Appelez-nous	-
4	W10274958		Panel Front (stainless)				$ 155.13
5	W11763736		Access Panel (black)   (Replaces: W10237243)			Immediately	$ 42.25
5	WPW10441007		Access Panel (white)   (Replaces: W10237242)				$ 170.94
6	WPW10503549		Fastener (white)   (Replaces: W10331793)			Immediately	$ 7.77
6	WPW10503548		Fastener (black)   (Replaces: W10331789)			Immediately	$ 30.39
7	W10175320		Name Plate				$ 41.71
8	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
9	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
