Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10282553 Instructions, Installation Appelez-nous -
1 W10300258 Energy Guide Appelez-nous -
1 W10130978 Guide, Use & Care Appelez-nous -
1 W10142800 Tech Sheet Appelez-nous -
2 W11806566 Arm, Hinge (left)   (Replaces: W10143374) In-Stock Immediately $ 71.77

2 W11613572 Arm, Hinge (right)   (Replaces: W10143373) In-Stock Immediately $ 83.93

3 8268983 Stiffener, Door Special Order $ 38.77

4 WPW10274896 Panel, Front   (Replaces: W10274896) Special Order $ 362.51

5 WPW10441007 Access Panel   (Replaces: W10237242) Special Order $ 170.94

6 WPW10503549 Fastener   (Replaces: W10331793) In-Stock Immediately $ 7.77

7 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

8 WPW10109200 Screw   (Replaces: 489470) In-Stock Immediately $ 8.80


    View Diagram in Separate Window     Print Icon   Print Part List

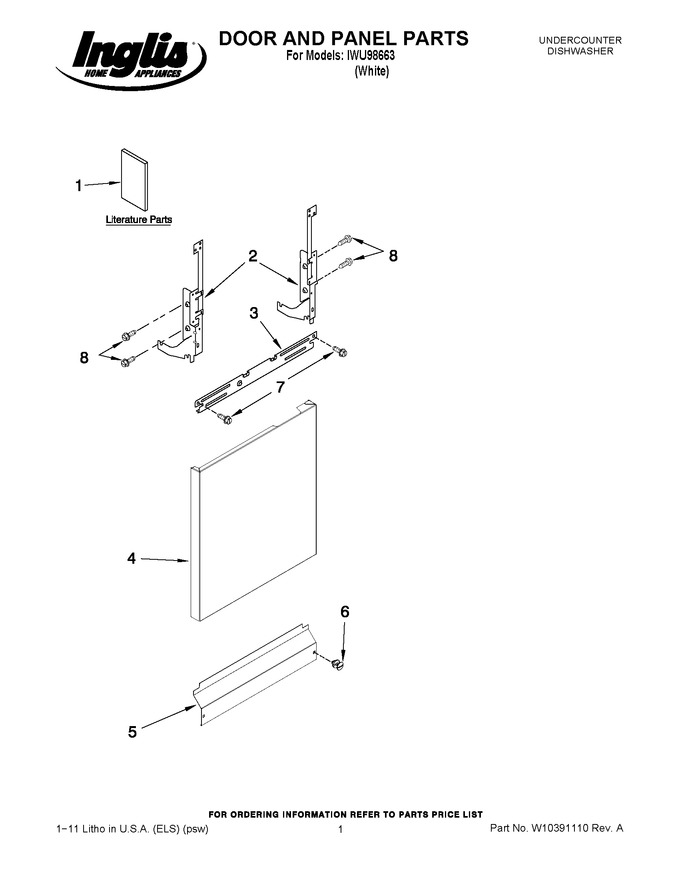

Diagram for IWU98663
