Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10300932 Energy Guide Appelez-nous -
1 W10195615 Tech Sheet/english Appelez-nous -
1 W10321585 Instructions, Installation Appelez-nous -
1 W10195616 Tech Sheet/french Appelez-nous -
1 W10300928 Guide, Use & Care (english/french) Appelez-nous -
1 W10300596 Guide, Use & Care (spanish) Appelez-nous -
2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 142.24

3 W10850371 Vapor Barrier Assembly   (Replaces: W10321449) In-Stock Immediately $ 32.88

4 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

5 WPW10526115 Access Panel (white)   (Replaces: W10369030) Special Order $ 175.17

5 WPW10526114 Access Panel (black)   (Replaces: W10369029) In-Stock Immediately $ 149.53

6 WPW10338287 Panel, Full Front (includes Items 10 & 16) (white)   (Replaces: W10338287) Special Order $ 393.45

6 WPW10338286 Panel, Full Front (includes Items 10 & 16) (black)   (Replaces: W10338286) Special Order $ 403.65

6 W10328256 Panel, Full Front (includes Items 10 & 16) (stainless) Special Order $ 193.75

7 WPW10307614 Screw   (Replaces: W10307614) In-Stock Immediately $ 7.55

8 W10831329 Insulation   (Replaces: 8268581) In-Stock Immediately $ 43.30

9 W10195735 Handle Assembly (includes Item 7) (black) Appelez-nous -
9 W10195738 Handle Assembly (includes Item 7) (stainless) Appelez-nous -
9 W10195736A Handle Assembly (includes Item 7) (white)   (Replaces: W10195736) Special Order $ 63.06

10 W11157086 Stud, Mounting   (Replaces: W10195726) In-Stock Immediately $ 8.87

11 W11126003 Insulation   (Replaces: W10315897) In-Stock Immediately $ 65.25

12 WPW10503549 Fastener (white)   (Replaces: W10331793) In-Stock Immediately $ 7.77

12 WPW10503548 Fastener (black)   (Replaces: W10331789) In-Stock Immediately $ 30.39

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

14 W11116870 Bracket, Panel Control   (Replaces: W10194911) Special Order $ 89.95

15 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

16 WPW10243391 Nameplate (stainless)   (Replaces: W10243391) Special Order $ 58.31

16 WPW10243392 Nameplate (black)   (Replaces: W10243392) Special Order $ 73.70

16 WPW10243393 Nameplate (white)   (Replaces: W10243393) Special Order $ 69.98


    View Diagram in Separate Window     Print Icon   Print Part List

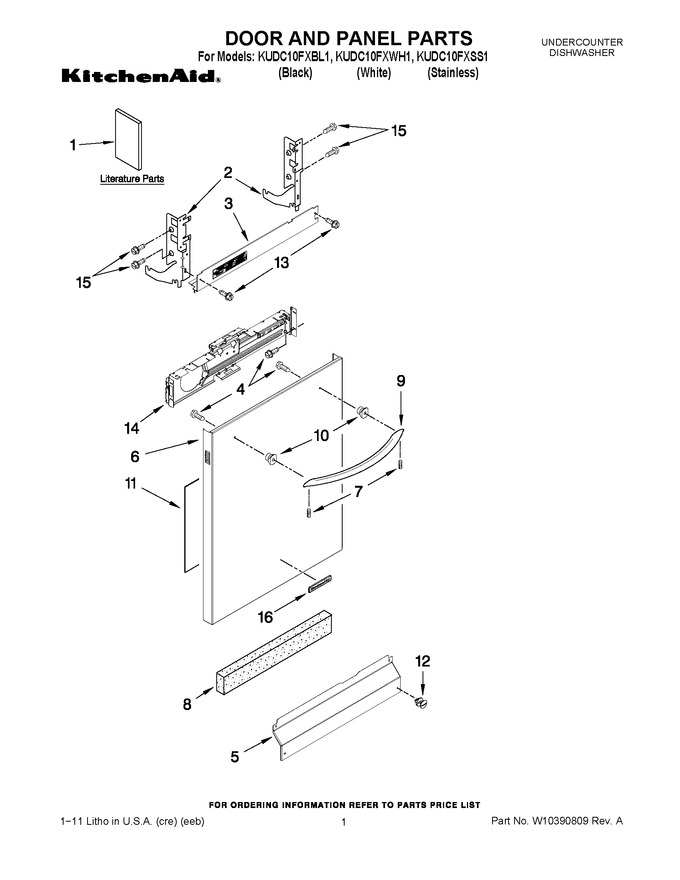

Diagram for KUDC10FXWH1
