SELECT A DIAGRAM

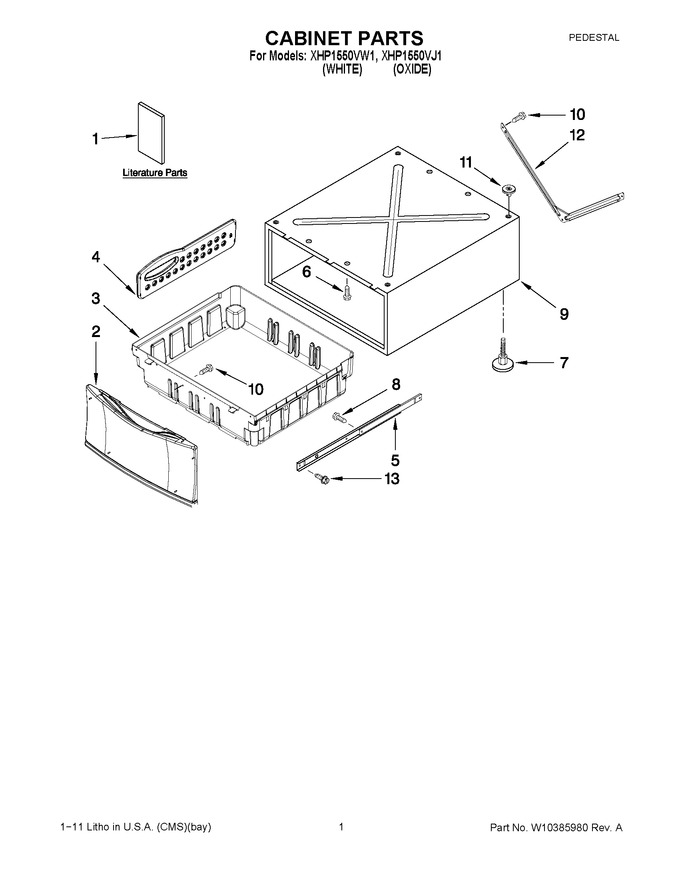

01 - Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10198562		Installation Instructions		Appelez-nous	-
2	W10193242		Drawer Front Assembly (oxide)				$ 107.58
2	W10172749		Drawer Front Assembly (white)				$ 119.45
3	W11047790		Drawer Bin   (Replaces: W10169635)				$ 205.26
4	WPW10189999		Divider, Drawer   (Replaces: W10189999)			Immediately	$ 42.59
5	WP8578394		Slide Assembly   (Replaces: 8578394)				$ 103.07
6	WPW10346892		Screw   (Replaces: 3400111)			Immediately	$ 7.55
7	WP8563585		Foot Assembly   (Replaces: 8563585)			Immediately	$ 14.76
8	WP3388228		Screw, 6-20 X 3/8   (Replaces: 3388228)				$ 7.30
9	N/P		Cabinet (not Serviced)		Appelez-nous	-
10	WPW10213953		Screw, 8-18 X 1/2   (Replaces: W10213953)			Immediately	$ 7.55
11	WP8537982		Pad (4)   (Replaces: 8537982)			Immediately	$ 8.69
12	WPW10169550		Brace, Rear   (Replaces: W10169550)				$ 41.10
13	WP9740849		Screw, 8-18 X 7/16   (Replaces: 9740849)				$ 7.30
NI	W10218249		Paint, Touch-up (1/2oz.) (evergreen Gloss)				$ 11.29
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
NI	W10202939		Paint, Touch-up (1/2oz.) (oxide Metallic)				$ 26.23
NI	8212605		Paint, Touch-up (1/2oz.) (ultimate Silver)				$ 16.01
NI	W10157756		Paint, Touch-up (1/2oz.) (aspen)				$ 14.94
NI	W10162090		Paint, Touch-up (1/2oz.) (chestnut)		Appelez-nous	-
NI	W10202940		Paint, Touch-up (1/2oz.) (ocean Sapphire)				$ 19.32
NI	W10218248		Paint, Touch-up (1/2oz.) (emerald Green Metallic)		Appelez-nous	-
NI	8212604		Paint, Touch-up (1/2oz.) (burgundy)				$ 13.57
NI	350930		Paint, Pressurized Spray (12 Oz.) (white)			Immediately	$ 40.12
NI	285006		Paint, Pressurized Spray (12 Oz.) (black)				$ 59.89
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	72017		Paint, Touch-up (1/2oz.) (white)			Immediately	$ 12.30

    View Diagram in Separate Window       Print Part List
