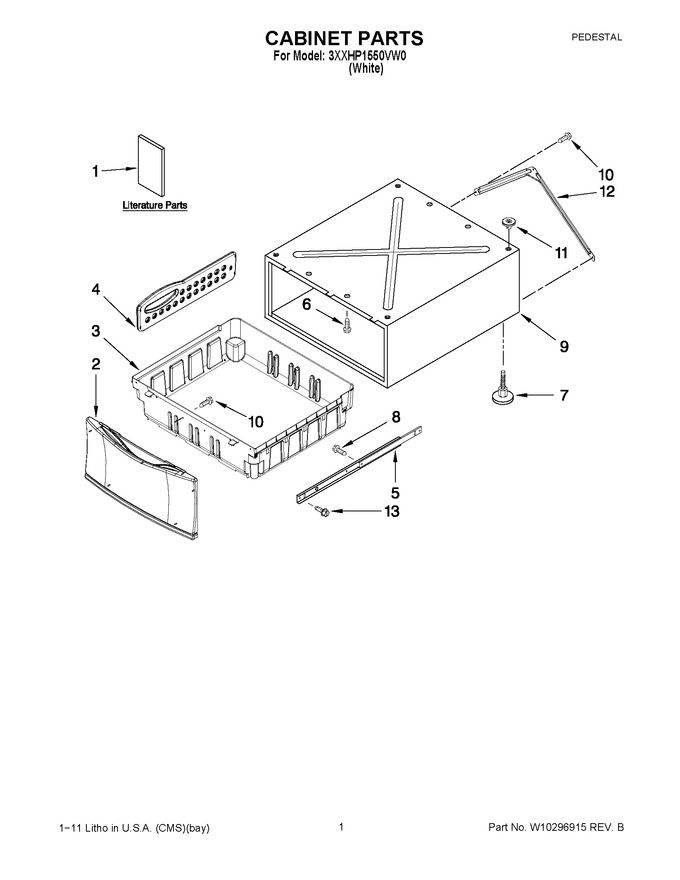

01 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10284351 | Installation Instructions |
|
- | |||||
| 2 | W10172749 | Drawer Front Assembly (white) |
|
$ 119.45 | |||||
| 3 | W11047790 | Drawer Bin (Replaces: W10169635) |
|
$ 195.49 | |||||
| 4 | WPW10189999 | Divider, Drawer (Replaces: W10189999) |
|
Immediately | $ 40.56 | ||||
| 5 | WP8578394 | Slide Assembly (Replaces: 8578394) |
|
$ 98.16 | |||||
| 6 | WPW10346892 | Screw (Replaces: 3400111) |
|
Immediately | $ 7.19 | ||||
| 7 | WP8563585 | Foot Assembly (Replaces: 8563585) |
|
Immediately | $ 14.76 | ||||
| 8 | WP3388228 | Screw, 6-20 X 3/8 (Replaces: 3388228) |
|
$ 6.95 | |||||
| 9 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 10 | WPW10213953 | Screw, 8-18 X 1/2 (Replaces: W10213953) |
|
Immediately | $ 7.19 | ||||
| 11 | WP8537982 | Pad (4) (Replaces: 8537982) |
|
Immediately | $ 8.69 | ||||
| 12 | WPW10169550 | Brace, Rear (Replaces: W10169550) |
|
$ 39.14 | |||||
| 13 | WP9740849 | Screw, 8-18 X 7/16 (Replaces: 9740849) |
|
$ 6.95 | |||||
| NI | 350938 | Paint, Pressurized Spray (12 Oz.) (primer Grey) |
|
- | |||||
| NI | 350930 | Paint, Pressurized Spray (12 Oz.) (white) |
|
Immediately | $ 38.21 | ||||
| NI | 72017 | Paint, Touch-up (1/2oz.) (white) |
|
Immediately | $ 12.30 |
