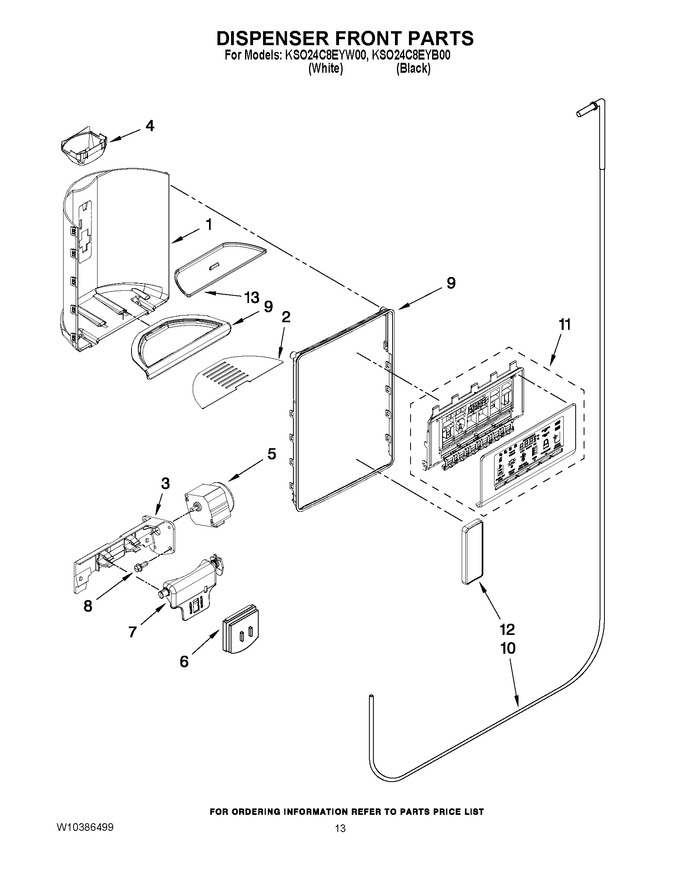

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10317270		Grate, Drip Tray   (Replaces: W10317270)				$ 75.65
3	W11130210		Bracket, Ice Door   (Replaces: W10317235)				$ 160.56
4	WPW10435760		Chute, Door   (Replaces: W10339578)				$ 23.94
5	WPW10205978		Motor, Ice Door   (Replaces: W10205978)				$ 104.12
6	W11130210		Ice Door Assembly (includes Items 3, 5, 7, & 8)   (Replaces: W10355494)				$ 160.56
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W10317265		Housing, Tray (black)				$ 62.19
9	W10317264		Housing, Tray (white)				$ 62.66
10	WPW10279849		Water Tube   (Replaces: W10279849)				$ 119.42
11	W10366662		Electronic Control Assy (black)		Appelez-nous	-
11	WPW10393881		Electronic Control Assy (silver)   (Replaces: W10366661)				$ 495.27
12	W11561037		Pad, Ice & Water (black)   (Replaces: W10317253)				$ 82.93
12	W10317250		Pad, Ice & Water (white)				$ 321.84
13	W10317275		Drip Tray, Insert (black)		Appelez-nous	-
13	W10317274		Drip Tray, Insert (white)				$ 85.12
