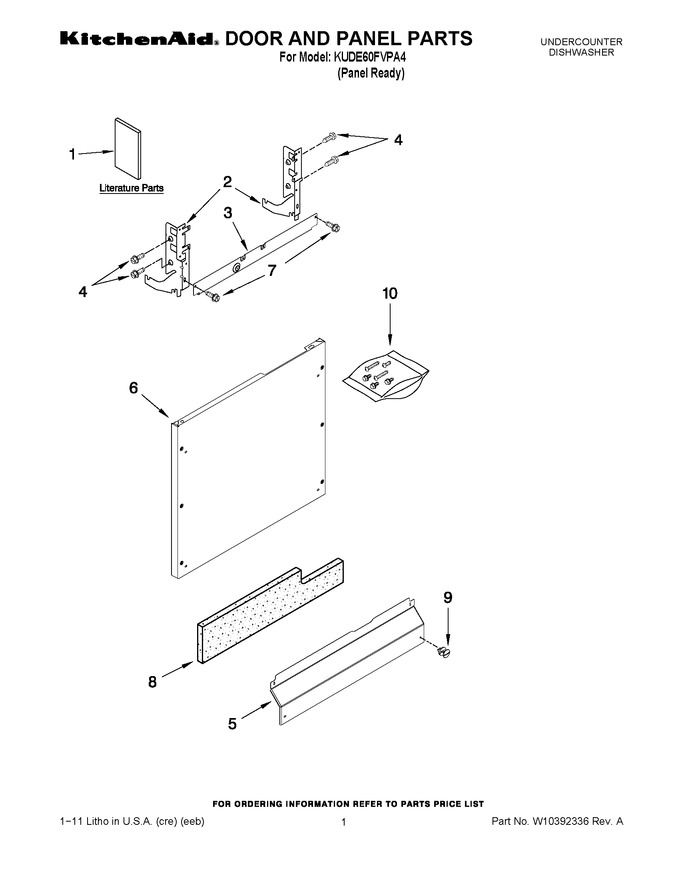

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Third Level Rack And Track Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10300235		Guide, Use & Care English/french		Appelez-nous	-
1	W10158347		Tech Sheet (french)		Appelez-nous	-
1	W10311168		Energy Guide		Appelez-nous	-
1	W10275503		Instructions, Installation		Appelez-nous	-
1	W10300236		Guide, Use & Care Spanish		Appelez-nous	-
1	W10142826		Tech Sheet		Appelez-nous	-
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
3	8268983		Stiffener, Door				$ 38.77
4	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
5	W10827631		Access Panel (black)   (Replaces: W10369024)			Immediately	$ 195.64
6	W11113792		Panel, Front Panel Ready   (Replaces: 8535133)			Immediately	$ 373.42
7	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
8	W10831329		Insulation Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30
9	WPW10503548		Fastener (black)   (Replaces: W10331789)			Immediately	$ 30.39
10	8531882		Screws, Fid				$ 15.36

    View Diagram in Separate Window       Print Part List
