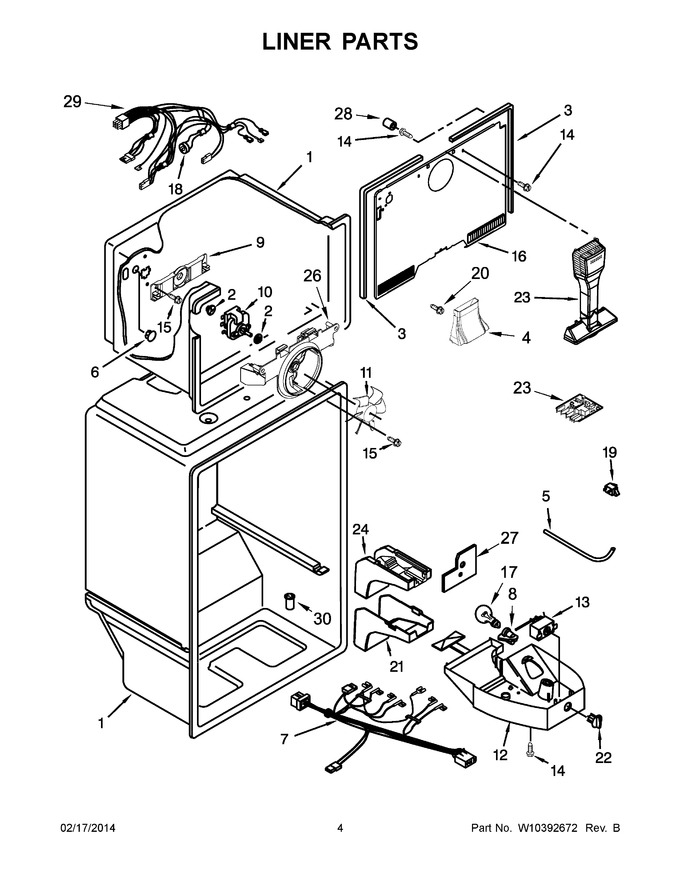

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | W10849448 | Gasket, Evaporator Cover (Replaces: W10468762) |
|
Immediately | $ 95.69 | ||||
| 4 | W10396926 | Assembly, Tower Connection |
|
$ 39.05 | |||||
| 5 | WP2196003 | Tube, Thermostat Barrier (Replaces: W10381575) |
|
$ 8.35 | |||||
| 6 | WP941839 | Plug, Button (white) (Replaces: 941839) |
|
$ 8.03 | |||||
| 7 | W10318068 | Assembly, Control Box Wire |
|
$ 132.58 | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 9 | 2254454 | Bracket Evaporator Fan, Rear |
|
Immediately | $ 75.44 | ||||
| 10 | WPW10189703 | Fan Motor (Replaces: W10208121) |
|
Immediately | $ 76.37 | ||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 107.61 | ||||
| 12 | W10316941 | Box, Control |
|
$ 98.58 | |||||
| 13 | WPW10584888 | Assembly, Thermostat (Replaces: W10343913) |
|
Immediately | $ 259.91 | ||||
| 14 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 15 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 16 | W10305172 | Cover, Evaporator |
|
- | |||||
| 17 | W10887190 | Bulb, Light (Replaces: W10311528) |
|
Immediately | $ 19.23 | ||||
| 18 | WPW10392132 | Defrost, Bi-metal (Replaces: W10392132) |
|
Immediately | $ 9.05 | ||||
| 19 | W11384469 | Switch, Rocker Arm (refrigerator) (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 20 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 10.33 | |||||
| 21 | WPW10305175 | Cover, Air Diffuser (Replaces: W10305175) |
|
$ 114.36 | |||||
| 22 | W10356940 | Knob |
|
- | |||||
| 23 | W10305174 | Tower, Air |
|
$ 43.06 | |||||
| 24 | W10376137 | Assembly, Air Diffuser |
|
- | |||||
| 25 | WPW10352689 | Control, Adaptive Defrost (Replaces: W10352689) |
|
$ 299.70 | |||||
| 26 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 32.47 | ||||
| 27 | W10300161 | Shield, Light |
|
Immediately | $ 96.62 | ||||
| 28 | WP487996 | Closure, Plastic (Replaces: 487996) |
|
$ 8.67 | |||||
| 29 | W10339629 | Evaporator Fan Wire Assembly |
|
- | |||||
| 30 | WP2210509 | Body, Valve Tube (Replaces: 2171931) |
|
$ 99.15 |
