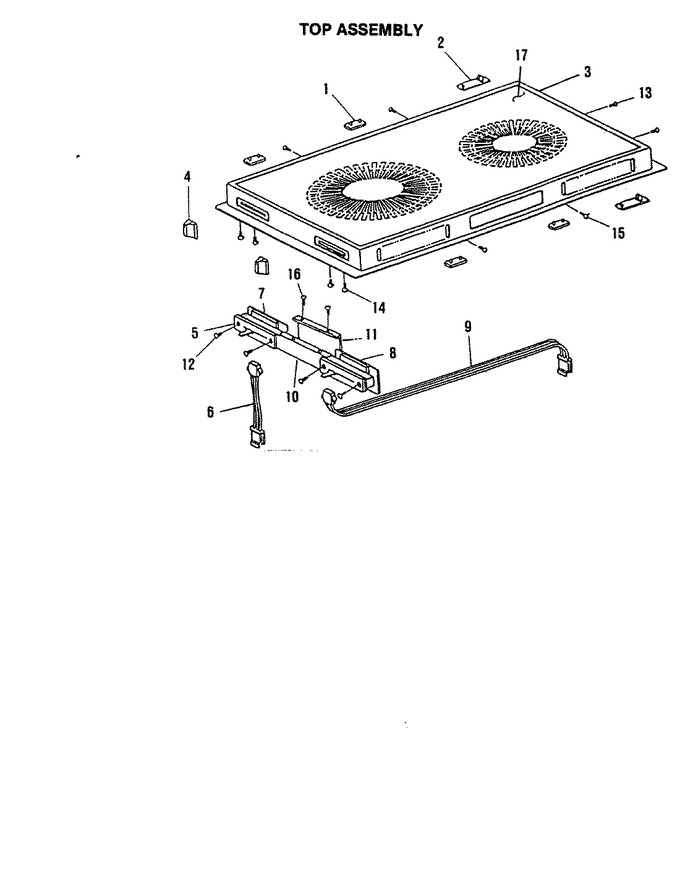

01 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 702047 | Top Spacer |
|
- | |||||
| 2 | 702048 | Spacer |
|
- | |||||
| 3 | 702045 | Top Assembly (white) |
|
- | |||||
| 3 | 712215 | Top Assembly (black) |
|
- | |||||
| 4 | Y702051 | Knob |
|
- | |||||
| 5 | 702053 | Seal - Rubber |
|
- | |||||
| 6 | DE81-09158A | Lead Connector B (Replaces: 702085) |
|
$ 586.22 | |||||
| 7 | 702049 | Power Control Assembly L.h. |
|
- | |||||
| 8 | DE81-07475A | Power Control R.h. (Replaces: 702050) |
|
$ 786.40 | |||||
| 9 | DE81-04240A | Lead Connector A (Replaces: 702083) |
|
$ 345.21 | |||||
| 10 | 702052 | Switch Mount |
|
- | |||||
| 11 | 702076 | Plate, Fixture |
|
- | |||||
| 12 | 711005 | Screw |
|
- | |||||
| 13 | 711011 | Screw |
|
- | |||||
| 14 | 711009 | Screw |
|
- | |||||
| 15 | 711006 | Screw |
|
- | |||||
| 16 | 711008 | Screw |
|
- | |||||
| 17 | 712106 | Cartridge (black) |
|
- | |||||
| 17 | 702094 | Cartridge Glass (white) |
|
- |
