01 - Cover Sheet
02 - Case, Gearing And Planetary Unit Parts
03 - Base And Pedestal Unit Parts
04 - Motor And Control Unit Parts

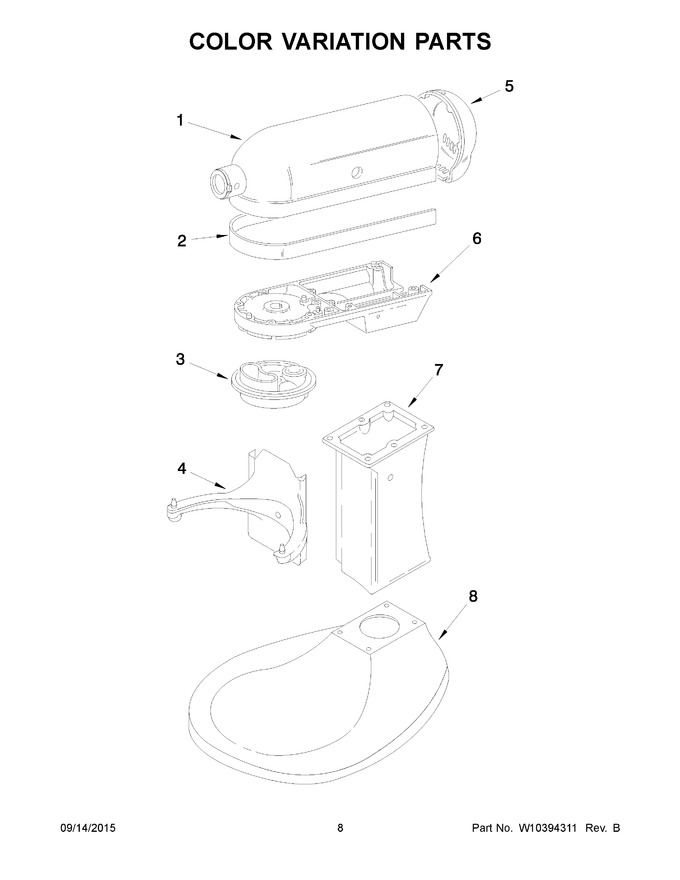

05 - Color Variation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11672793 | Motor Housing (white) (Replaces: 240291-1) |
|
$ 113.22 | |||||
| 2 | W11092114 | Trim Band (black) (Replaces: W10190248) |
|
- | |||||
| 3 | WP240286-1 | Planetary (white) (Replaces: 240286-1) |
|
Immediately | $ 25.99 | ||||
| 4 | 3179300 | Bowl Supprt & Pins (white) |
|
$ 66.43 | |||||
| 5 | WP240253-1 | End Cover (white) (Replaces: 240253-1) |
|
$ 21.47 | |||||
| 6 | 9701508 | Lower Gearcase (white) |
|
- | |||||
| 7 | 240148-4 | Column (white) |
|
- | |||||
| 8 | 3179280 | Base & Foot Assembly (white) |
|
- | |||||
| 1A | WP240291-21 | Motor Housing (empire Red) (Replaces: 240291-21) |
|
$ 101.29 | |||||
| 1B | WP240291-7 | Motor Housing (cobalt Blue) (Replaces: 240291-7) |
|
$ 98.13 | |||||
| 3A | W11084831 | Planetary (empire Red) (Replaces: 240286-23) |
|
$ 27.92 | |||||
| 3B | W10342514 | Planetary (cobalt Blue) (Replaces: 240286-10) |
|
$ 45.31 | |||||
| 4A | 3179318 | Bowl Supprt & Pins (empire Red) |
|
- | |||||
| 4B | 3179303 | Bowl Supprt & Pins (cobalt Blue) |
|
- | |||||
| 5A | W11084313 | End Cover (empire Red) (Replaces: 240253-22) |
|
$ 29.89 | |||||
| 5B | 240253-8 | End Cover (cobalt Blue) |
|
$ 46.79 | |||||
| 6A | W10218387 | Lower Gearcase (empire Red) |
|
- | |||||
| 6B | 240354-26 | Lower Gearcase (cobalt Blue) |
|
- | |||||
| 7A | 9702393 | Column (empired Red) |
|
- | |||||
| 7B | 240148-8 | Column (cobalt Blue) |
|
- | |||||
| 8A | 3179299 | Base & Foot Assembly (empire Red) |
|
- | |||||
| 8B | 3179283 | Base & Foot Assembly (cobalt Blue) |
|
- |
