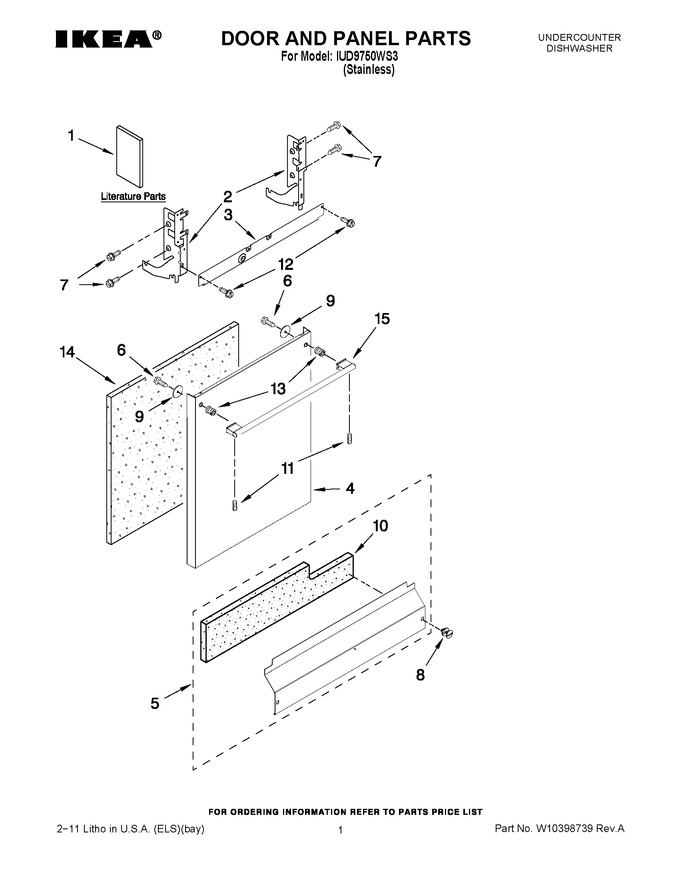

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10142800 | Tech Sheet |
|
- | |||||
| 1 | W10282555 | Instructions, Installation |
|
- | |||||
| 1 | W10300261 | Energy Guide |
|
- | |||||
| 1 | W10254924 | Guide, Use & Care (spanish) |
|
- | |||||
| 1 | W10254923 | Guide, Use & Care (enlish/french) |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 2 | W11806608 | Arm, Hinge (right) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | W10199566 | Panel, Front |
|
$ 168.84 | |||||
| 5 | W10827631 | Access Panel (Replaces: W10369024) |
|
Immediately | $ 195.64 | ||||
| 6 | W10123421 | Screw (black) |
|
$ 12.83 | |||||
| 7 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 8 | WPW10503548 | Fastener (black) (Replaces: W10331789) |
|
Immediately | $ 30.39 | ||||
| 9 | W10142904 | Plate-backing |
|
$ 50.57 | |||||
| 10 | W10831329 | Insulation, Access Panel (Replaces: W10073540) |
|
Immediately | $ 43.30 | ||||
| 11 | WP8534008 | Set Screw (Replaces: 8534008) |
|
$ 9.37 | |||||
| 12 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 13 | WP8564951 | Stud, Mounting (Replaces: 8564951) |
|
Immediately | $ 19.33 | ||||
| 14 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 15 | W10175377 | Handle |
|
$ 179.04 |
