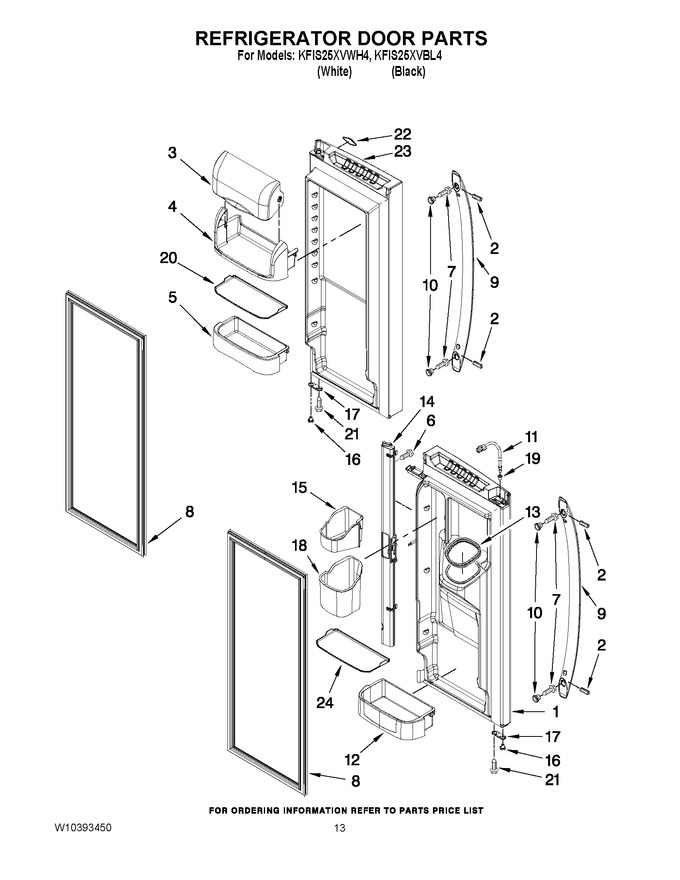

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12978040W | Door, Left (white) |
|
- | |||||
| 1 | 12978040B | Door, Left (black) |
|
- | |||||
| 2 | WP3400203 | Screw, Set (Replaces: W10287054) |
|
Immediately | $ 4.80 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 78.73 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 83.82 | ||||
| 5 | WPW10119841 | Bin, Shelf (medium) (Replaces: W10119841) |
|
Immediately | $ 90.23 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.02 | |||||
| 7 | W10290759 | Screw, Handle |
|
$ 5.83 | |||||
| 8 | W11396037 | Gasket, Door (white) (Replaces: W10163896) |
|
$ 297.77 | |||||
| 8 | W11378944 | Gasket, Door (black) (Replaces: W10163898) |
|
Immediately | $ 187.59 | ||||
| 9 | W10314516 | Handle, Door (black) |
|
- | |||||
| 9 | WPW10314515 | Handle, Door (white) (Replaces: W10314515) |
|
$ 227.13 | |||||
| 10 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 11.96 | ||||
| 11 | W10275942 | Waterline, Door |
|
Immediately | $ 114.54 | ||||
| 12 | WPW10119846 | Bin, Shelf (gallon) (Replaces: W10119846) |
|
Immediately | $ 81.84 | ||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: 12665101SP) |
|
Immediately | $ 31.20 | ||||
| 14 | WP12722813W | Mullion, Door (white) (Replaces: 12722813W) |
|
$ 325.02 | |||||
| 14 | WPW10151713 | Mullion, Door (black) (Replaces: 12722813B) |
|
$ 325.79 | |||||
| 15 | W10187453 | Bucket, Dispenser (upper) (Replaces: 12977401) |
|
$ 69.60 | |||||
| 16 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 16 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 7.76 | ||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.05 | ||||
| 17 | 12968202W | Stop, Door (white) |
|
$ 65.99 | |||||
| 18 | 12977501 | Bucket, Dispenser (lower) |
|
- | |||||
| 19 | 12996601 | Clip, Bushing Wire (left Door) |
|
$ 10.05 | |||||
| 20 | W11510593 | Gripper-medium (Replaces: W10184031) |
|
Immediately | $ 16.60 | ||||
| 21 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.00 | |||||
| 22 | WPW10243393 | Nameplate (white) (Replaces: W10243393) |
|
$ 66.65 | |||||
| 22 | WPW10243392 | Nameplate (black) (Replaces: W10243392) |
|
$ 70.19 | |||||
| 23 | 12978017B | Door, Right (black) |
|
- | |||||
| 23 | 12978017W | Door, Right (white) |
|
- | |||||
| 24 | W11510594 | Gripper-gallon (Replaces: W10184032) |
|
$ 19.06 |
