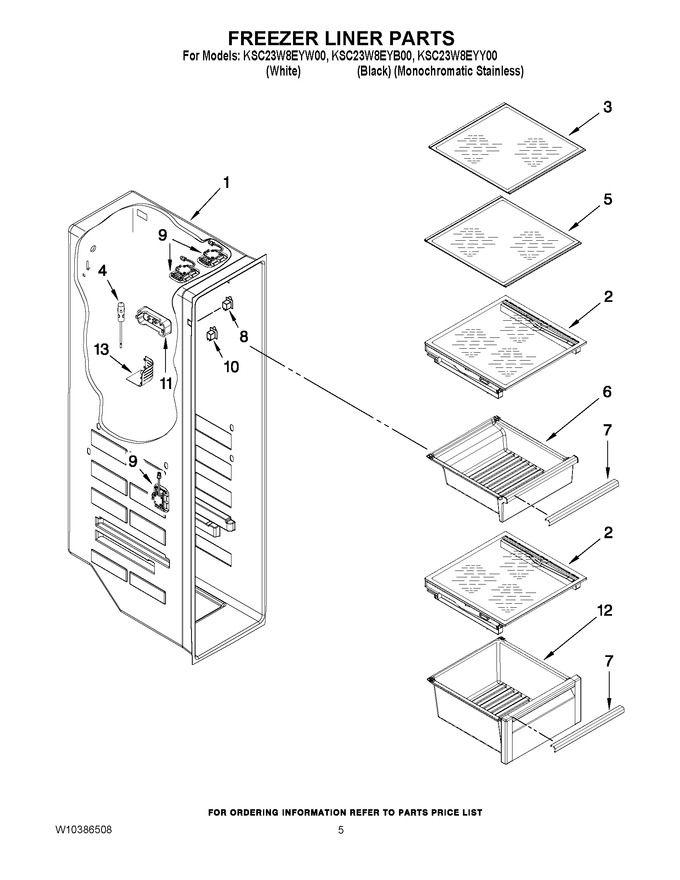

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W10362178		Cover Assy		Appelez-nous	-
3	W11217335		Shelf, Glass Upper   (Replaces: W10315529)				$ 255.45
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 33.60
5	W11217336		Shelf, Glass Lower   (Replaces: W10315530)				$ 247.94
6	W10315552		Pan, Freezer Upper Also Order 7		Appelez-nous	-
7	W10542018		Trim, Handle   (Replaces: W10316519)				$ 115.56
8	W11384469		Switch, Rocker Arm Top, Rh   (Replaces: C3680314)			Immediately	$ 39.09
9	W11683241		Led Light Assy   (Replaces: W10279030)			Immediately	$ 271.97
10	11466114		Switch, Rocker Arm Top, Lh		Appelez-nous	-
11	W10356635		Cover, Thermistor				$ 19.22
12	W10315553		Pan, Freezer Lower Also Order 7		Appelez-nous	-
13	W10260382		Lens, Light   (Replaces: W10294700)				$ 80.58
