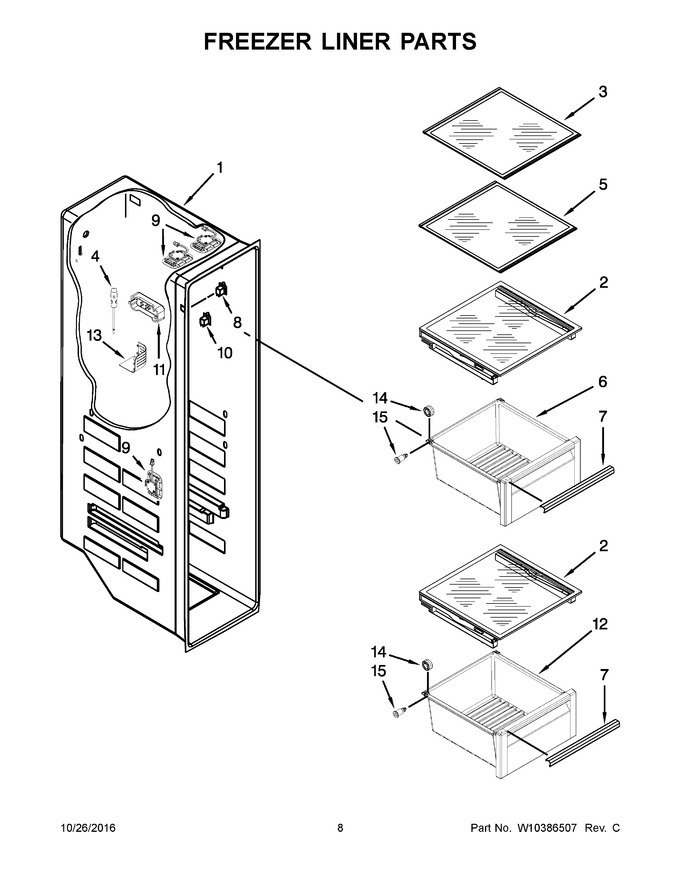

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10362175 | Assembly, Cover |
|
$ 240.05 | |||||
| 3 | W10321181 | Shelf, Glass Upper (Replaces: W10315533) |
|
$ 240.54 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 30.24 | ||||
| 5 | WPW10321182 | Shelf, Glass Lower (Replaces: W10315534) |
|
$ 246.29 | |||||
| 6 | W10846447 | Assembly, Freezer Bin (Replaces: W10315556) |
|
Immediately | $ 246.03 | ||||
| 7 | W10542017 | Trim, Handle (Replaces: W10316518) |
|
$ 92.72 | |||||
| 8 | W11123943 | Switch, Rocker Arm (Replaces: 2149954) |
|
$ 32.99 | |||||
| 9 | W11683241 | Assembly, Led Light (Replaces: W10279030) |
|
Immediately | $ 244.77 | ||||
| 10 | W11457217 | Switch, Rocker Arm Combination (freezer) (Replaces: 1115373) |
|
$ 36.08 | |||||
| 11 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 79.54 | ||||
| 12 | W10542032 | Assembly, Bottom Freezer Bin (Replaces: W10315557) |
|
$ 278.81 | |||||
| 13 | W10260382 | Lens, Light (Replaces: W10294700) |
|
$ 72.52 | |||||
| 14 | W11164152 | Roller (Replaces: W10278139) |
|
Immediately | $ 14.17 | ||||
| 15 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 32.89 |
