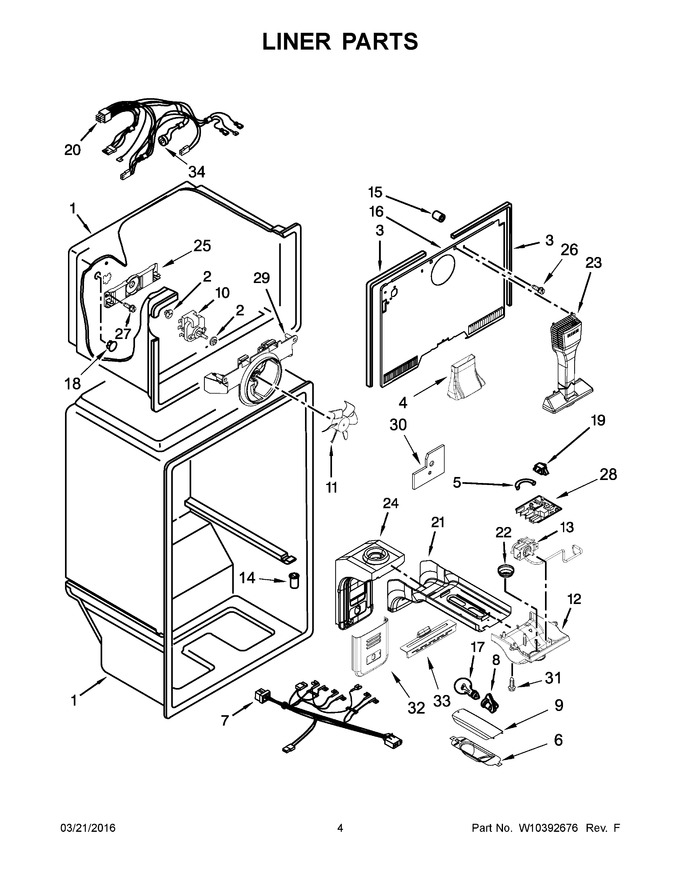

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 41.55 | ||||
| 3 | W10849448 | Gasket, Evaporator Cover (Replaces: W10468762) |
|
Immediately | $ 86.12 | ||||
| 4 | W10396926 | Assembly, Tower Connection |
|
$ 39.05 | |||||
| 5 | WP2196003 | Tube, Thermostat Barrier (Replaces: W10381575) |
|
$ 7.52 | |||||
| 6 | W10300161 | Shield, Light |
|
Immediately | $ 86.96 | ||||
| 7 | W10318068 | Assembly, Control Box Wire |
|
$ 119.32 | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 9 | WPW10348614 | Cover, Light (Replaces: W10348614) |
|
$ 106.16 | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 88.26 | ||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 96.85 | ||||
| 12 | W10316941 | Box, Control |
|
$ 88.72 | |||||
| 13 | WPW10584888 | Assembly, Thermostat (Replaces: W10343913) |
|
Immediately | $ 233.92 | ||||
| 14 | WP2210509 | Valve, Release (Replaces: 2210509) |
|
$ 89.24 | |||||
| 15 | WP487996 | Closure, Plastic (Replaces: 487996) |
|
$ 7.80 | |||||
| 16 | W10305172 | Cover, Evaporator |
|
- | |||||
| 17 | W11679940 | Light Bulb (Replaces: 2311792) |
|
Immediately | $ 10.17 | ||||
| 18 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 7.23 | |||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 35.18 | ||||
| 20 | W10339627 | Assembly, Evaporator Fan Wire (incluldes Bi-metal Defrost) |
|
$ 222.60 | |||||
| 21 | WPW10305175 | Cover, Air Diffuser (Replaces: W10305175) |
|
$ 102.92 | |||||
| 22 | W10356940 | Knob |
|
- | |||||
| 23 | W10305174 | Tower, Air |
|
$ 43.06 | |||||
| 24 | W10376137 | Assembly, Air Diffuser |
|
- | |||||
| 25 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 67.90 | ||||
| 26 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 27 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 28 | WPW10352689 | Control, Adaptive Defrost (Replaces: W10352689) |
|
$ 269.73 | |||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 29.22 | ||||
| 30 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 91.21 | |||||
| 31 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 32 | W10310927 | Cup, Air Diffuser |
|
- | |||||
| 33 | W10326336 | Cover, Rear |
|
- | |||||
| 34 | WPW10392132 | Bi-metal, Defrost (Replaces: W10392132) |
|
Immediately | $ 8.15 |
