01 - Cover Sheet

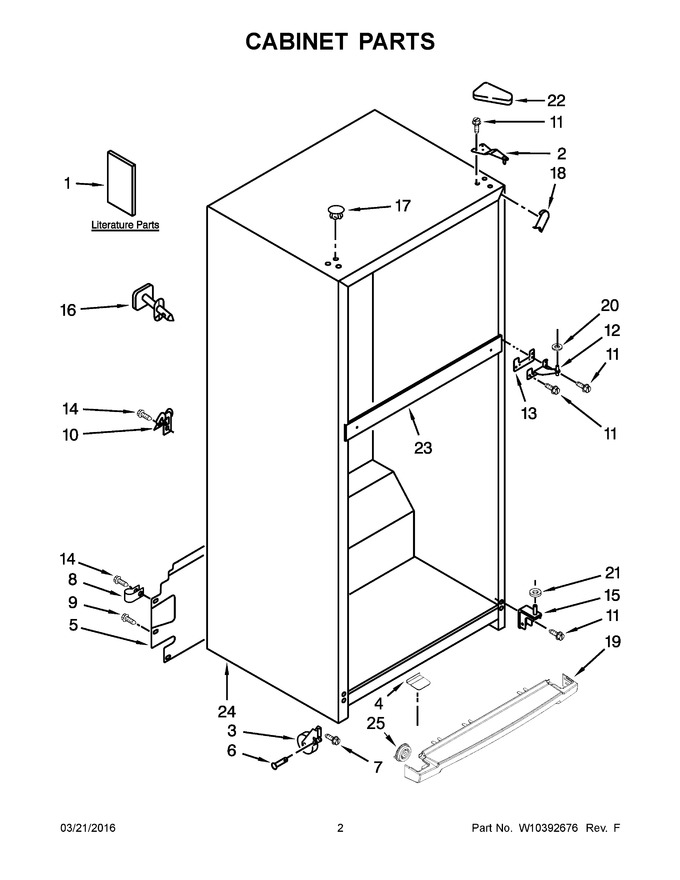

02 - Cabinet Parts


03 - Liner Parts


04 - Shelf Parts


05 - Freezer Door Parts


06 - Refrigerator Door Parts


07 - Unit Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10404596		Service And Wiring Sheet		Appelez-nous	-
2	WPW10300065		Hinge (top)   (Replaces: W10300069)				$ 12.55
3	W10849386		Assembly, Roller   (Replaces: W10327136)				$ 103.28
4	W10381059		Endcap, Grille (white)				$ 78.81
5	W10636716		Cover, Unit   (Replaces: W10384413)				$ 94.74
6	W11594405		Axle, Rivet   (Replaces: 2221797)			Immediately	$ 17.21
7	W10850698		Screw   (Replaces: 3400517)				$ 12.98
8	W10861184		Clamp, Tube   (Replaces: W10329003)				$ 59.31
9	WP489427		Screw   (Replaces: 489427)				$ 7.06
10	549193		Clamp, Power Cord				$ 12.65
11	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
12	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 82.82
13	WP2183852		Shim, Hinge Center   (Replaces: 2183852)				$ 10.06
14	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 7.45
15	WP2254473		Hinge, Bottom   (Replaces: 2254473)			Immediately	$ 8.35
16	N/P		Fitting, Water Tube (not Serviced)		Appelez-nous	-
17	WP2151652		Hole Plug (white)   (Replaces: 2201012)				$ 20.58
18	WPW10283959		Corner Filler (white)   (Replaces: W10283959)				$ 7.39
19	WPW10300127		Grille (white)   (Replaces: W10300127)				$ 145.34
20	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 10.28
21	WP487576		Washer, Plastic   (Replaces: 487576)			Immediately	$ 9.67
22	W10331654		Cover, Hinge (left Hand (white))		Appelez-nous	-
23	N/P		Rail, Center (not Serviced)		Appelez-nous	-
24	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
25	W10331226		Drum, Toe Grille				$ 42.68
17A	WP2183998		Hole Plug (black)   (Replaces: 2183998)				$ 17.11
17B	WPW10520307		Hole Plug (grey)   (Replaces: 2254506)			Immediately	$ 6.80
18A	W11252732		Corner Filler (black)   (Replaces: W10283960)				$ 11.76
18B	W10851579		Corner Filler (grey)   (Replaces: W10283961)			Immediately	$ 6.80
19A	WPW10353933		Grille (black)   (Replaces: W10353933)				$ 146.52
19B	WPW10353935		Grille (grey)   (Replaces: W10353935)			Immediately	$ 146.81
1A	W10551713		Use And Care Guide		Appelez-nous	-
1B	W10417318		Energy Label		Appelez-nous	-
22A	W10331560A		Cover, Hinge (right Hand (white))   (Replaces: W10331560)				$ 12.10
22B	W10353948A		Cover, Hinge (left Hand (black))   (Replaces: W10353948)				$ 13.62
22C	W10353945A		Cover, Hinge (right Hand (black))   (Replaces: W10353945)				$ 13.62
22D	W10353950A		Cover, Hinge (left Hand (grey))   (Replaces: W10353950)				$ 21.94
22E	W10353947A		Cover, Hinge (right Hand (grey))   (Replaces: W10353947)				$ 12.85
4A	W10381060		Endcap, Grille (black)				$ 36.12
4B	W10381064		Endcap, Grille (grey)				$ 70.38
