SELECT A DIAGRAM

01 - Top And Cabinet Parts

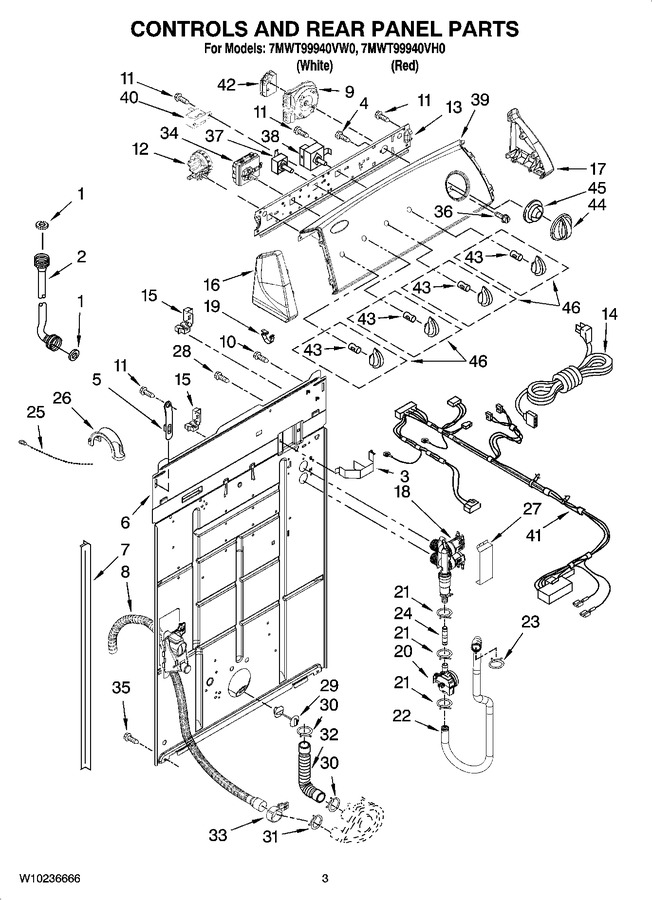

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 7.70
2	WP89503		Hose, Water Inlet (2) (hot Water)   (Replaces: W10196191)			Immediately	$ 24.09
2	WP89503		Hose, Water Inlet (2) (cold Water)   (Replaces: W10194210)			Immediately	$ 24.09
3	8055003		Clip, Harness & Pressure Hose				$ 36.24
4	3400073		Screw, Ground		Appelez-nous	-
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.78
6	W10194451		Panel, Rear				$ 149.72
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
8	WPW10189267		Drain Hose Assembly (includes Includes Item 33)   (Replaces: W10189267)			Immediately	$ 70.58
9	WP8577787		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 8577787)			Immediately	$ 322.86
10	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
12	W10339331		Switch, Water Level   (Replaces: W10177243)		Appelez-nous	-
13	8566003		Bracket, Control				$ 64.58
14	W10115689		Cord, Power (includes Item 15)		Appelez-nous	-
15	3952821		Strain Relief, Power Cord		Appelez-nous	-
16	WP8565957		Cap, End (l.h.) (includes Item 19) (white)   (Replaces: 8566035)				$ 61.68
16	W10205959		Cap, End (l.h.) (includes Item 19) (red)		Appelez-nous	-
17	W10205953		Cap, End (r.h.) (includes Item 19) (red)				$ 43.09
17	WP8565954		Cap, End (r.h.) (includes Item 19) (white)   (Replaces: 8566032)				$ 62.70
18	WPW10175893		Valve, Water Inlet   (Replaces: W10175893)			Immediately	$ 207.62
19	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
20	W10176591		Flowmeter				$ 20.70
21	W10185367		Clamp, Hose				$ 6.65
22	W11087528		Hose, Flowmeter To Tub Ring   (Replaces: W10166732)				$ 66.64
23	WP596669		Clamp, Hose   (Replaces: W10117298)			Immediately	$ 8.40
24	W10166731		Hose, Valve To Flowmeter				$ 68.67
25	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.90
26	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.97
27	W10188372		Shield, Suds		Appelez-nous	-
28	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
29	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 18.90
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.81
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
32	285871		Hose, Pump To Tub (includes Item 30)   (Replaces: 3951449)			Immediately	$ 26.68
33	8541668		Clamp, Hose				$ 21.26
34	WPW10184148		Switch, Water Temperature (atc)   (Replaces: W10184148)			Immediately	$ 106.87
35	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.96
37	W10168264		Switch, Rotary   (Replaces: 3950356)				$ 126.34
38	W10163674		Switch, Rotary		Appelez-nous	-
39	W10209247		Panel, Console		Appelez-nous	-
40	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
41	W10214752		Harness, Wiring (for Detail See Pages 9 & 10)		Appelez-nous	-
42	8578411		Circuit Board, Agitation Delay				$ 52.84
43	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
44	W10034730		Knob, Timer				$ 25.16
45	WP8566018		Dial, Timer   (Replaces: 8566018)				$ 51.04
46	W10034380		Knob, Control				$ 25.06

    View Diagram in Separate Window       Print Part List
