SELECT A DIAGRAM

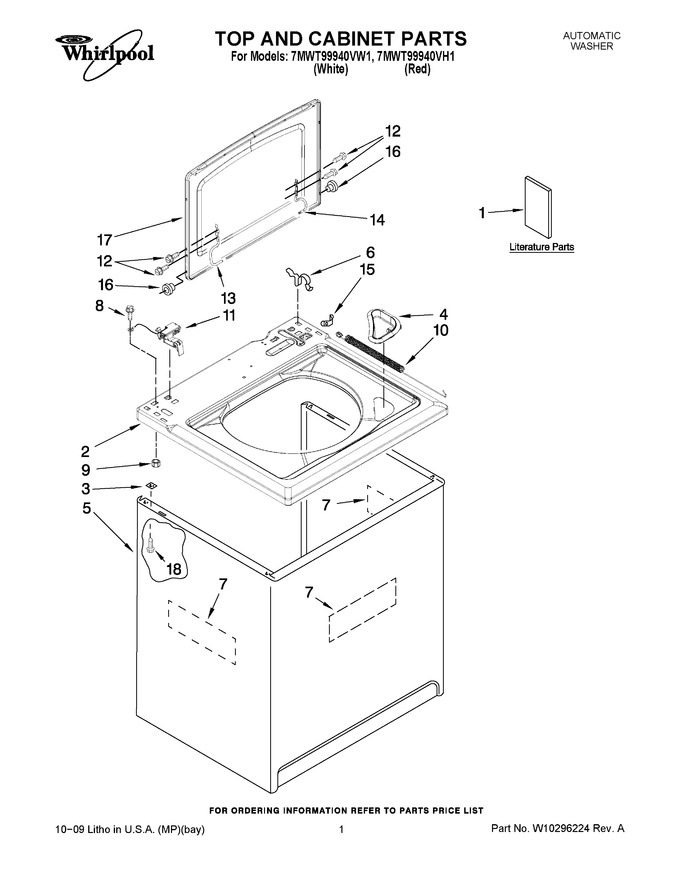

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10213648		Feature Sheet		Appelez-nous	-
1	W10213426		Wiring Diagram		Appelez-nous	-
1	W10216203		Energy Guide		Appelez-nous	-
1	W10155455		Installation Instructions		Appelez-nous	-
1	W10213638		Use & Care Guide		Appelez-nous	-
2	W10212420		Top (red)		Appelez-nous	-
2	W10203530		Top (white)		Appelez-nous	-
3	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 8.07
4	WPW10192089		Dispenser, Bleach   (Replaces: W10192089)			Immediately	$ 8.36
5	63424		Cabinet (white)				$ 388.52
5	W10205707		Cabinet (red)				$ 98.50
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 8.19
7	W11096159		Cabinet - Damper, Sound (3)   (Replaces: W10177046)				$ 28.73
8	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 7.30
9	W10080180		Nut, Hex   (Replaces: 8533959)				$ 14.15
10	W10208782		Spring-extension, Glass Lid		Appelez-nous	-
11	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 39.82
12	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119828)			Immediately	$ 7.55
13	8559336		Hinge, Lid (l.h.)		Appelez-nous	-
14	W10202542		Hinge, Lid (r.h.)		Appelez-nous	-
15	3350828		Clip, Retainer				$ 57.81
16	8319539		Bearing, Lid Hinge (2)				$ 5.51
17	WPW10164516		Lid Assembly (white)   (Replaces: W10164516)				$ 470.45
17	W10212192		Lid Assembly (red)		Appelez-nous	-
18	WP3390631		Screw, 10-16 X 3/8 (4)   (Replaces: 3390631)				$ 8.25
