SELECT A DIAGRAM

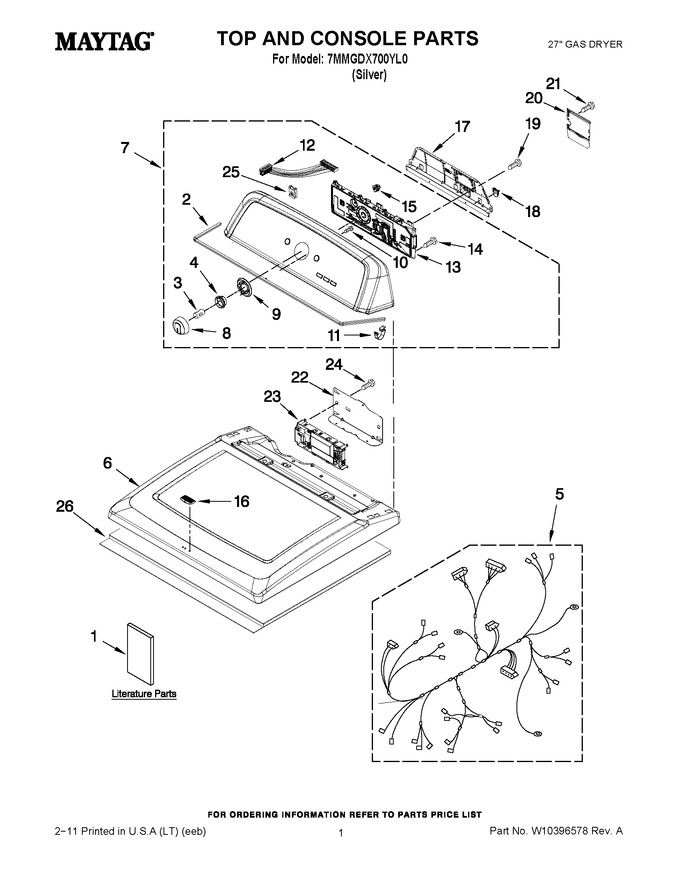

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10097036		Tech Sheet		Appelez-nous	-
1	W10334061		Guide, Use & Care		Appelez-nous	-
1	W10368978		Installation, Instruction		Appelez-nous	-
2	W10280079		Seal, Console		Appelez-nous	-
3	WP8536939		Spring-clip Knob   (Replaces: 8536939)			Immediately	$ 8.20
4	W10326923		Spacer, Knob		Appelez-nous	-
5	W10287253		Main Harness		Appelez-nous	-
6	W10268731		Top				$ 132.83
7	WPW10334054		Console Assembly (complete)   (Replaces: W10334054)				$ 532.46
8	WPW10251384		Knob Assembly   (Replaces: W10251384)				$ 64.58
9	W10305134		Bezel, Cycle Trim				$ 26.37
10	3196172		Screw, 6-19 X .375			Immediately	$ 13.47
11	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
12	W10285494		Cable-ui		Appelez-nous	-
13	WPW10272644		User Interface Assembly   (Replaces: W10272644)				$ 313.89
14	W10853898		Screw, 8-16 X .750   (Replaces: W10219342)			Immediately	$ 8.18
15	W10274524		Fascia, Tensioner		Appelez-nous	-
16	W10492808		Maytag Badge   (Replaces: W10323735)				$ 59.82
17	W10096969		Panel, Rear Console   (Replaces: W10269598)				$ 197.80
18	W10279552		Plug-upper (rear Panel)		Appelez-nous	-
19	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
20	W10338363		Cover, Terminal Block		Appelez-nous	-
21	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
22	W10271580		Bracket, Motor Control		Appelez-nous	-
23	WPW10214009		Ccu-control   (Replaces: W10296532)				$ 395.99
24	WP488627		Screw, 8-18 X .500   (Replaces: 342055)				$ 8.11
25	W11213336		Nut, 8-18 U-type   (Replaces: W10298336)				$ 8.13
26	W10123956		Panel, Dampening		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
