SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts


03 - Door Parts


04 - Control Panel Parts


05 - Dispenser Parts


06 - Tub And Basket Parts


07 - Pump Parts


08 - Optional Parts (not Included)

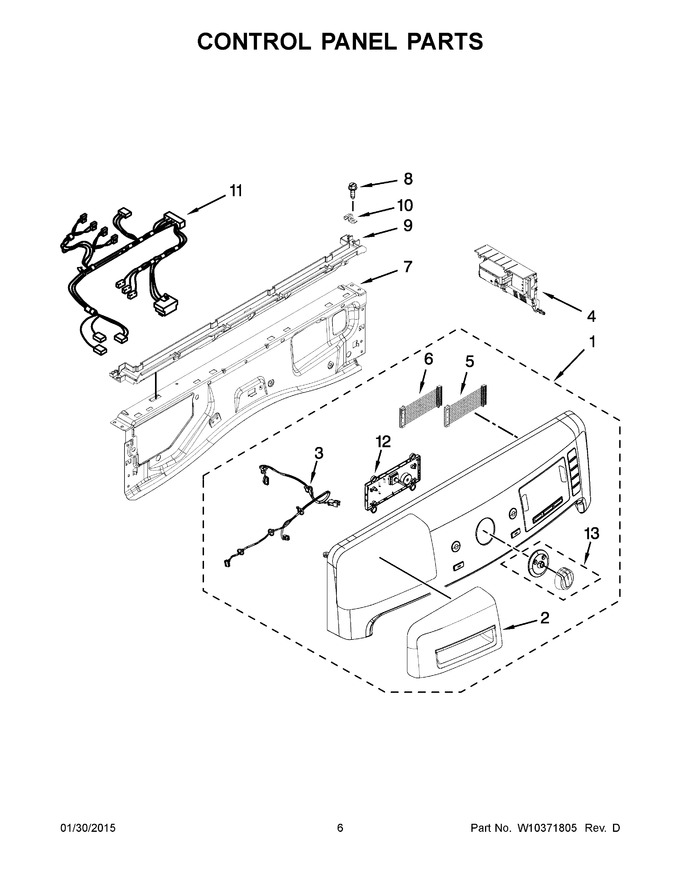

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10392688		Console Asssembly (white)   (Replaces: W10392688)				$ 531.94
2	W10281852		Handle, Dispenser Drawer (white)		Appelez-nous	-
3	W10271988		Harness, Main Ui				$ 228.16
4	W10388206		Control Unit, Central		Appelez-nous	-
5	W10309986		Harness, Jumper				$ 15.17
6	W10309987		Harness, Jumper				$ 11.77
7	W10208197		Bracket, Console				$ 157.09
8	WP489464		Screw   (Replaces: W10142290)			Immediately	$ 7.54
9	WPW10653575		Channel, Water   (Replaces: W10317570)				$ 81.85
10	W10317566		Clip, Spring				$ 8.24
11	W10271982		Harness, Wiring (upper Main)				$ 224.97
12	W10368100		Ui, Center (includes Knob And Inlay)		Appelez-nous	-
13	W10514146		Kit, Knob And Inlay			Immediately	$ 98.91
1A	W10392690		Console Asssembly (red)				$ 1,115.31
1B	W10392689		Console Asssembly (cosmetallic)				$ 771.48
2A	W10316371		Handle, Dispenser Drawer (red)				$ 64.27
2B	W10315748		Handle, Dispenser Drawer (cosmetallic)				$ 74.13

    View Diagram in Separate Window       Print Part List
