SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

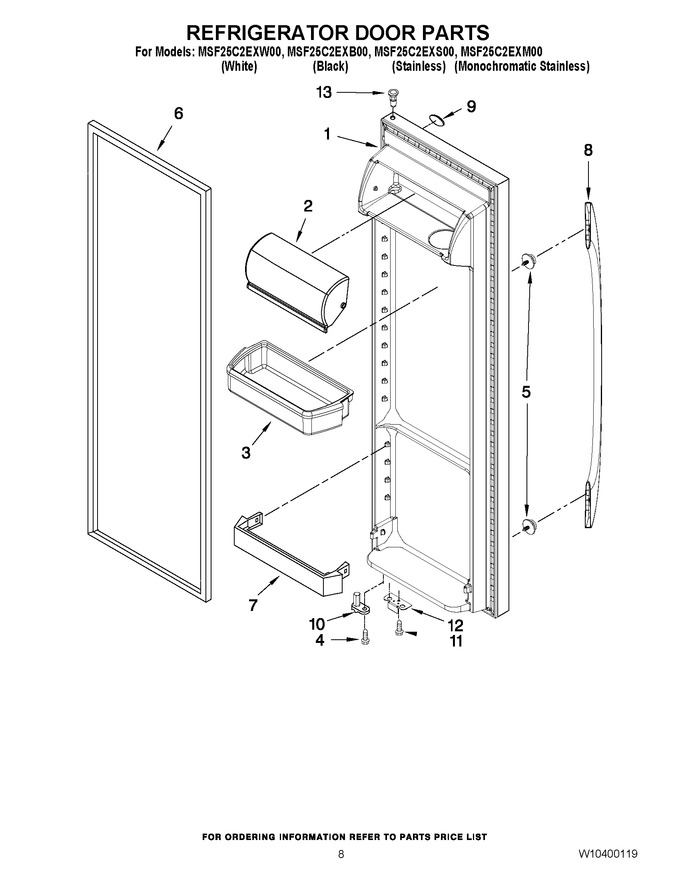

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2263686W		Refrigerator Door (includes Item No.6) (white)		Appelez-nous	-
1	2263686B		Refrigerator Door (includes Item No.6) (black)		Appelez-nous	-
1	2256786S		Refrigerator Door (includes Item No.6) (stainless)		Appelez-nous	-
1	2256786SA		Refrigerator Door (includes Item No.6) (mono Stainless)		Appelez-nous	-
2	WP2256101		Compartment Door   (Replaces: 2256101)			Immediately	$ 89.42
3	WPW10321304		Shelf Bin   (Replaces: W10321304)			Immediately	$ 44.95
4	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
5	WPW10288153		Screw   (Replaces: W10288153)			Immediately	$ 9.65
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2309529)				$ 332.76
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309528)			Immediately	$ 333.00
6	WPW10136734		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2327163)				$ 335.39
7	WP2156022		Shelf Bin   (Replaces: 2156022)			Immediately	$ 78.61
8	W10296255		Handle (black)		Appelez-nous	-
8	W10296254		Handle (white)		Appelez-nous	-
8	WPW10170743		Handle (stainless)   (Replaces: W10170743)				$ 365.52
9	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
10	WP2182179		Door Closer Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	W10219812		Bracket, Door Stop (black)				$ 24.48
12	W10219811		Bracket, Door Stop (silver)				$ 25.43
13	WP2182181		Thimble-top   (Replaces: 2308091)				$ 8.15

    View Diagram in Separate Window       Print Part List
