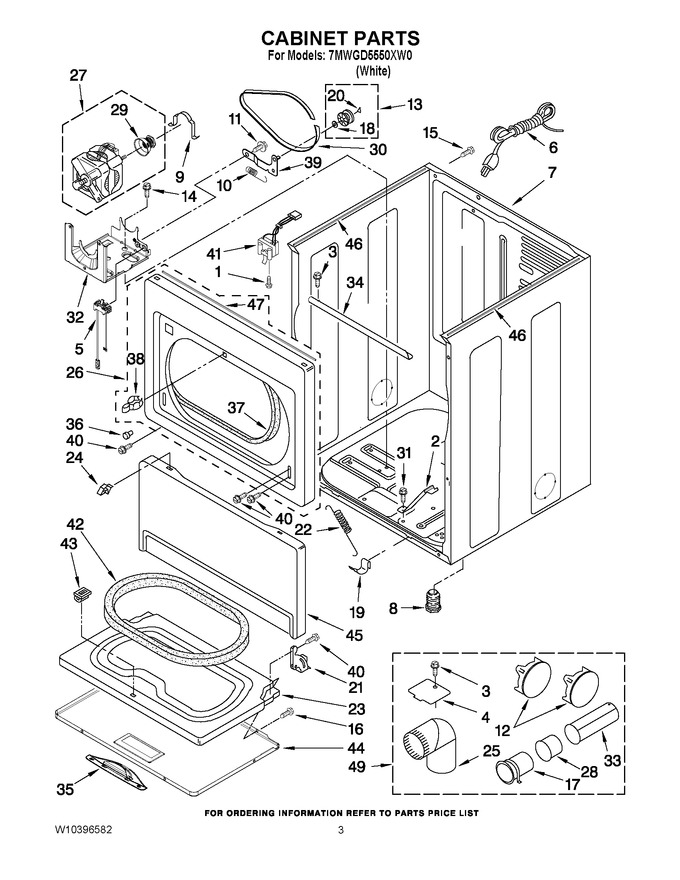

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.71
2	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
3	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.45
4	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 8.47
5	WPW10411937		Switch, Broken Belt   (Replaces: W10246525)			Immediately	$ 32.45
6	W11222083		Cord, Power   (Replaces: 344020)				$ 113.96
7	W11417441		Cabinet   (Replaces: 8310656)				$ 396.15
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.40
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 23.22
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 7.76
12	WPW10404617		Plug, Multivent (white)   (Replaces: 49252)				$ 68.02
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 29.26
14	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
15	WP90767		Screw, Ground   (Replaces: 8533971)			Immediately	$ 7.43
16	WP488627		Screw, 8-18 X 3/8   (Replaces: 342055)				$ 7.30
17	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 86.36
18	WPW10121334		Washer, Thrust   (Replaces: W10121334)			Immediately	$ 6.80
19	WPW10291934		Clip (2)   (Replaces: W10291934)				$ 7.33
20	WPW10512946		Tri Ring   (Replaces: 690997)			Immediately	$ 8.71
21	WP3387560		Hinge, Door (r.h.)   (Replaces: 3387560)				$ 98.28
21	WP3387559		Hinge, Door (l.h.)   (Replaces: 3387559)				$ 98.28
22	WP3387565		Spring, Door (2)   (Replaces: 3387565)				$ 37.19
23	WP8066045		Door, Rear   (Replaces: 8066045)				$ 183.78
24	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 7.61
25	WPW10416072		4`` - 90° Elbow   (Replaces: 49026)				$ 25.34
26	697227		Upper Front Panel		Appelez-nous	-
27	279787		Motor, Assembly 60 Hz.   (Replaces: 8538263)			Immediately	$ 222.14
28	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 74.61
29	W10837625		Pulley, Motor   (Replaces: 8578220)			Immediately	$ 11.49
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 29.53
31	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 6.80
32	W11481730		Bracket, Motor   (Replaces: W10242878)			Immediately	$ 85.36
33	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 83.92
34	W10236068		Bracket, Cabinet				$ 22.02
35	WPW10284093		Handle, Door   (Replaces: W10284093)				$ 94.76
36	693152		Bumper				$ 10.36
37	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
38	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 32.20
40	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.08
41	WP3406107		Door Switch Assembly   (Replaces: 3406107)			Immediately	$ 28.08
42	W10325058		Door Seal				$ 122.85
43	279570		Catch, Door Assembly   (Replaces: 690081)			Immediately	$ 8.00
44	W10279553		Door, Front		Appelez-nous	-
45	WP3406797		Toe Panel (includes. Illus. 36 )   (Replaces: 697215)				$ 225.23
46	W10336128		Foam, Cabinet				$ 13.57
47	W10312811		Foam Seal				$ 60.96
NI	WPW10131132		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: W10331132)				$ 68.23
NI	49621		Foot - Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
