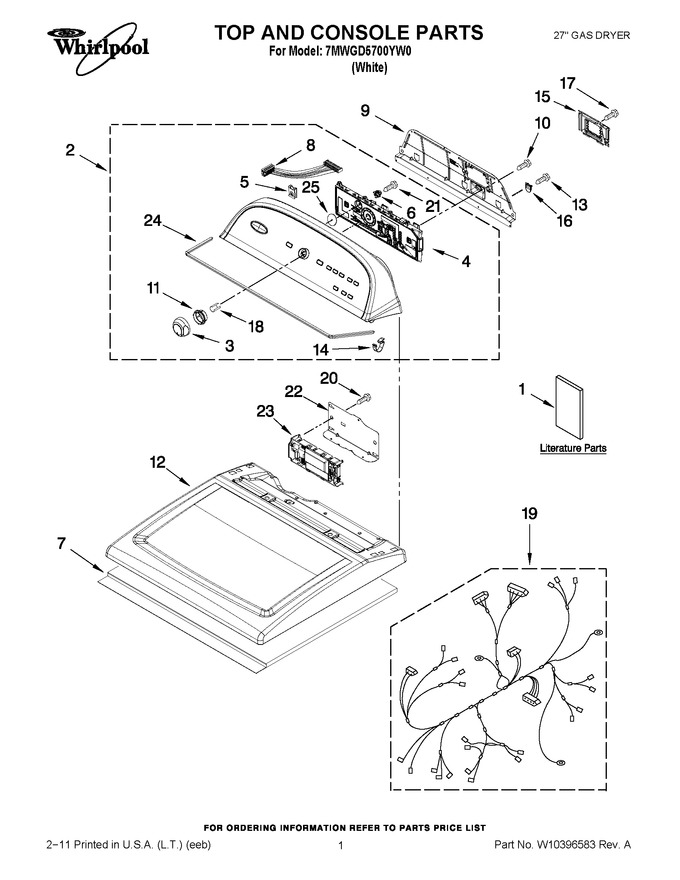

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10329763		Installation Instructions		Appelez-nous	-
1	W10097034		Tech Sheet		Appelez-nous	-
1	W10368975		Guide, Use & Care		Appelez-nous	-
2	W10348758		Console Assembly		Appelez-nous	-
3	WPW10251392		Knob Assembly (includes No. 18 )   (Replaces: W10251392)				$ 59.55
4	WPW10269626		User Interface   (Replaces: W10269626)			Immediately	$ 313.29
5	W11213336		Nut, 8-18 U-type   (Replaces: W10298336)				$ 8.13
6	W10274524		Tensioner		Appelez-nous	-
7	W10123956		Sound Absorber		Appelez-nous	-
8	W10285494		Cable, User Interface		Appelez-nous	-
9	W10096969		Panel, Rear Console				$ 197.80
10	WP693995		Screw, 8-16 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
11	W10325119		Spacer, Knob		Appelez-nous	-
12	W11641121		Top   (Replaces: W10260246)			Immediately	$ 215.10
13	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
15	W10338363		Cover, Terminal Block		Appelez-nous	-
16	W10279552		Plug-upper Rear Panel		Appelez-nous	-
17	WP90767		Screw, 8-18 X 1/2   (Replaces: 3390814)			Immediately	$ 8.25
18	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
19	W10287253		Harness, Wiring		Appelez-nous	-
20	W11213336		Screw   (Replaces: W10298336)				$ 8.13
21	W10853898		Screw, 8-16 X 1/2   (Replaces: W10219342)			Immediately	$ 8.18
22	W10271580		Bracket, Motor		Appelez-nous	-
23	WPW10214008		Control, Electronic   (Replaces: W10347319)				$ 400.65
24	W10280079		Seal, Console		Appelez-nous	-
25	W10323092		Seal, Ui		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
