SELECT A DIAGRAM

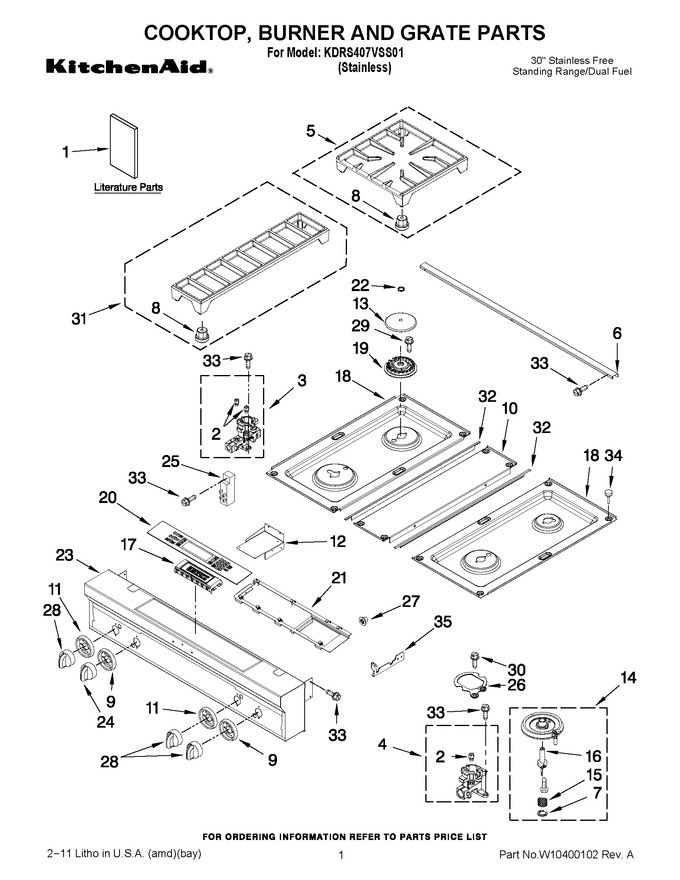

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Oven Parts


04 - Chassis Parts


05 - Top Venting Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10284339		Tech Sheet (english)		Appelez-nous	-
1	W10284343		Tech Sheet (french)		Appelez-nous	-
1	W10285550		Use & Care Guide		Appelez-nous	-
1	W10349767		Installation Instructions		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
2	WPW10160187		Orifice (rr)   (Replaces: W10160187)				$ 73.41
2	W10160179		Orifice (lf - High)				$ 75.77
2	W10160185		Orifice (lf - Low)				$ 73.54
2	W10160232		Orifice (lr & Rf)				$ 45.77
3	WPW10160187		Orifice Holder (dual - Lf)   (Replaces: W10160187)				$ 73.41
4	W10160234		Orifice Holder (lr & Rf)				$ 51.39
4	W10282659		Orifice Holder (rr)				$ 36.45
5	WPW10115928		Grate, Burner   (Replaces: W10115928)				$ 181.27
6	W10269218		Trim, Island				$ 238.64
7	W10160825		Clip, Electrode				$ 52.85
8	9759322		Rubber, Foot		Appelez-nous	-
9	W10261510		Bezel, Front				$ 49.60
10	W10189105		Filler, Cooktop		Appelez-nous	-
11	W10261512		Bezel, Rear		Appelez-nous	-
12	W10367052		Bracket, Spark Module		Appelez-nous	-
13	WPW10160229		Cap, Burner (lr & Rf)   (Replaces: W10160229)			Immediately	$ 103.32
13	WPW10115952		Cap, Burner (rr)   (Replaces: W10115952)				$ 107.11
13	WP8286816		Cap, Burner (lf)   (Replaces: 8286816)				$ 99.67
14	W10189082		Base, Burner (lr & Rf)		Appelez-nous	-
14	WPW10320937		Base, Burner (lf)   (Replaces: W10320937)				$ 141.50
14	WPW10320937		Base, Burner (rr)   (Replaces: W10250405)				$ 141.50
15	8286863		Spring, Electrode (rr)				$ 69.23
15	W10160826		Spring, Electrode (lf, Lr & Rf)		Appelez-nous	-
16	WPW10160235		Electrode (lr & Rf)   (Replaces: W10160235)				$ 37.87
16	WPW10145991		Electrode (rr)   (Replaces: W10145991)			Immediately	$ 76.02
16	W10250406		Electrode (lf (dual))				$ 30.27
17	WPW10298119		Module, User Interface   (Replaces: W10298119)				$ 459.53
18	W10282192		Cooktop (right)				$ 314.89
18	W10189104		Cooktop (left)				$ 146.58
19	WPW10282515		Burner Head (rr)   (Replaces: W10282515)			Immediately	$ 134.88
19	WPW10250459		Burner Head (lf)   (Replaces: W10250459)			Immediately	$ 138.81
19	W10250458		Burner Head (lr & Rf)		Appelez-nous	-
20	WPW10116104		Keypad   (Replaces: W10116104)			Immediately	$ 335.26
21	W10250476		Bracket User Interface		Appelez-nous	-
22	W10115953		Nut, Burner				$ 8.80
23	WPW10115889		Assembly, Console   (Replaces: W10115889)				$ 383.58
24	W11244176		Knob, Control (dual - Lf)   (Replaces: W10250389)				$ 70.53
25	WPW10475147		Module, Spark   (Replaces: 7431P038-60)			Immediately	$ 346.50
26	8286930		Gasket, Orifice Holder				$ 86.16
27	7103P166-60		Nut, Hex				$ 16.70
28	W11177673		Knob, Control   (Replaces: W10250391)				$ 81.50
29	W11404293		Screw   (Replaces: W10078270)			Immediately	$ 13.27
30	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.80
31	W11241670		Grate, Filler   (Replaces: W10115917)				$ 213.49
32	W10271524		Trim				$ 191.11
33	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 13.25
34	4448520		Bumper (12)				$ 20.03
35	W10130760		Bracket, Moving Console (left)				$ 68.35
35	W10130759		Bracket, Moving Console (right)				$ 68.35

    View Diagram in Separate Window       Print Part List
