SELECT A DIAGRAM

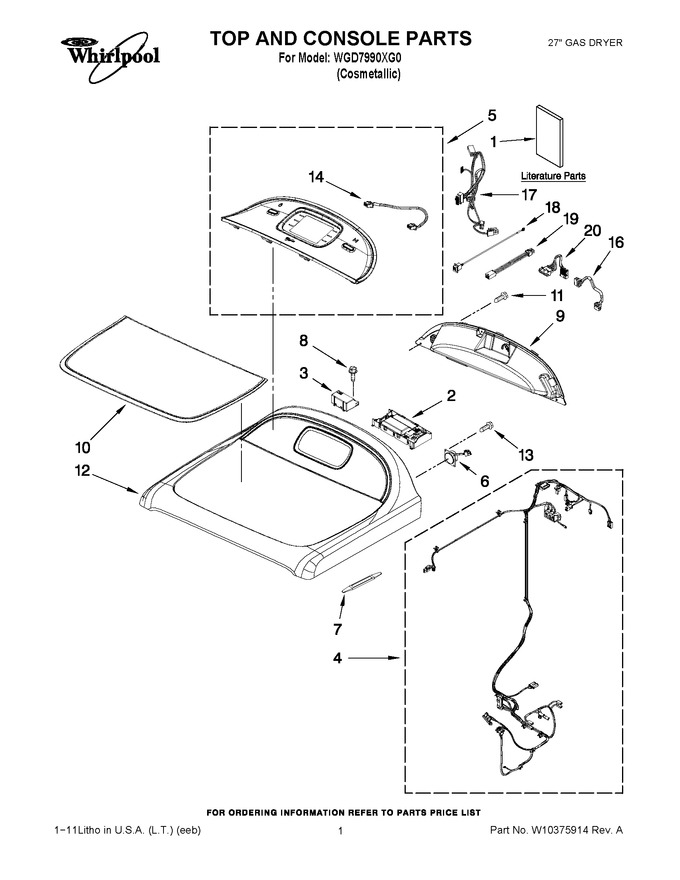

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10307147 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10372564		Installation		Appelez-nous	-
1	W10322367		Guide, Quick Start Instructions		Appelez-nous	-
1	W10309144		Use & Care Guide		Appelez-nous	-
1	W10304462		Tech Sheet		Appelez-nous	-
2	WPW10330449		Control, Electronic   (Replaces: W10330449)				$ 322.62
3	W10280594		Supply, Power				$ 123.19
4	W10280755		Harness, Main		Appelez-nous	-
5	W10285783		Console & Fascia Assembly		Appelez-nous	-
6	W10280595		Assembly, Speaker				$ 35.44
7	W10325497		Stick, Trim Assembly		Appelez-nous	-
8	W11311945		Screw   (Replaces: 12990204)				$ 14.72
9	W10285812		Panel, Rear Console		Appelez-nous	-
10	W10285802		Assembly, Panel (top Insert)		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
12	W10285773		Top & Console Assembly		Appelez-nous	-
13	W10300815		M2-0.89 X 10		Appelez-nous	-
14	W10289382		Jumper, (to Hmi)		Appelez-nous	-
16	W10280761		Jumper-ccu To Wide Iso		Appelez-nous	-
17	W10280738		Jumper, User Interface		Appelez-nous	-
18	W10280760		Jumper, User Interface (to Usb)		Appelez-nous	-
19	W10299940		Jumper-ccu P14		Appelez-nous	-
20	W10280758		Jumper-ccu P8		Appelez-nous	-
