SELECT A DIAGRAM

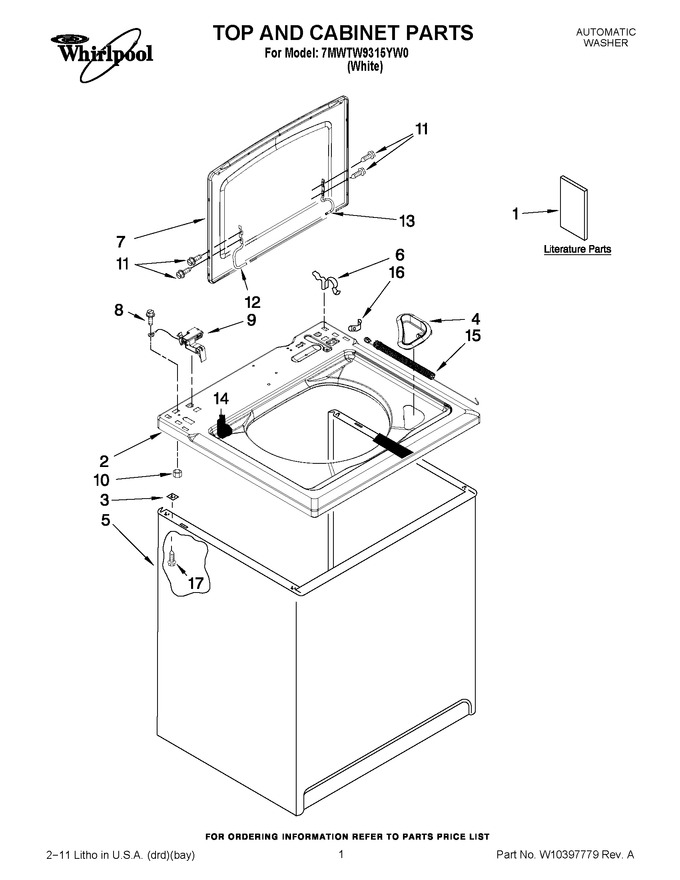

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Brake And Drive Tube Parts


07 - Gearcase Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10213638		Use & Care Guide		Appelez-nous	-
1	W10224331		Wiring Diagram		Appelez-nous	-
1	W10155455		Installation Instructions		Appelez-nous	-
1	W10381103		Feature Sheet		Appelez-nous	-
1	W10381115		Energy Guide (mexico)		Appelez-nous	-
2	W10203530		Top		Appelez-nous	-
3	WP62750		Spacer, Cabinet To Top   (Replaces: 62750)			Immediately	$ 8.07
4	WPW10192089		Dispenser, Bleach   (Replaces: W10192089)			Immediately	$ 8.36
5	63424		Cabinet				$ 388.52
6	WP62780		Clip, Top & Cabinet & Rear Panel   (Replaces: 62780)			Immediately	$ 8.19
7	WPW10164516		Lid Assembly   (Replaces: W10164516)				$ 470.45
8	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 7.30
9	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 39.82
10	W10080180		Nut, Hex   (Replaces: 8533959)				$ 14.15
11	WPW10119828		Screw, Lid Hinge   (Replaces: W10119828)			Immediately	$ 7.55
12	8559336		Hinge, Lid (l.h.)		Appelez-nous	-
13	W10202542		Hinge, Lid (r.h.)		Appelez-nous	-
14	8319539		Bearing, Lid Hinge				$ 5.51
15	W10208782		Spring-extension, Glass Lid		Appelez-nous	-
16	3350828		Clip, Retainer				$ 57.81
17	WP3390631		Screw, 10-16 X 1/2   (Replaces: 3390631)				$ 8.25
