Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12658582W Door, Refrigerator (white) Appelez-nous -
1 12658582B Door, Refrigerator (black) Appelez-nous -
2 WP67001130 Plug, Vent (white)   (Replaces: 12246607) In-Stock Immediately $ 8.21

2 WP12246608 Plug, Vent (black)   (Replaces: 12246608) In-Stock Immediately $ 8.15

3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 88.01

5 12567322SP Gripper, Bucket Appelez-nous -
6 WP67001130 Plug-handle Hole (white)   (Replaces: 12246607) In-Stock Immediately $ 8.21

6 WP12246608 Plug, Handle Hole (black)   (Replaces: 12246608) In-Stock Immediately $ 8.15

7 WPW10243392 Nameplate (black)   (Replaces: W10243392) Special Order $ 73.70

7 WPW10243393 Nameplate (white)   (Replaces: W10243393) Special Order $ 69.98

8 W10164039 Gasket, Door (black) Special Order $ 343.59

8 W10164038 Gasket, Door (white) Special Order $ 245.81

9 W10314516 Handle, Door (black) Appelez-nous -
9 WPW10314515 Handle, Door (white)   (Replaces: W10314515) Special Order $ 238.49

10 W10290759 Screw, Handle Special Order $ 5.83

11 WP67003639 Closure, Door (black)   (Replaces: 12028505B) Special Order $ 90.32

11 WP67003638 Closure, Door (white)   (Replaces: 12028505W) In-Stock Immediately $ 8.15

12 12849115SP Bucket, Shelf (2) (gallon) Appelez-nous -
13 67004978 Bushing (black)   (Replaces: 10961006B) Special Order $ 22.10

13 WP67004977 Bushing (white)   (Replaces: 10961006W) Special Order $ 8.20

14 12690503 Retainer, Door Special Order $ 48.08

15 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.57

17 W11708403 Stop, Door (black)   (Replaces: 10447112) In-Stock Immediately $ 14.75

17 12968202W Stop, Door (white)   (Replaces: 10447111) Special Order $ 69.29

18 WP67006113 Mount, Handle   (Replaces: 13001201) In-Stock Immediately $ 12.56

19 WP67005626 Caddy-can   (Replaces: 12690102) Special Order $ 81.49


    View Diagram in Separate Window     Print Icon   Print Part List

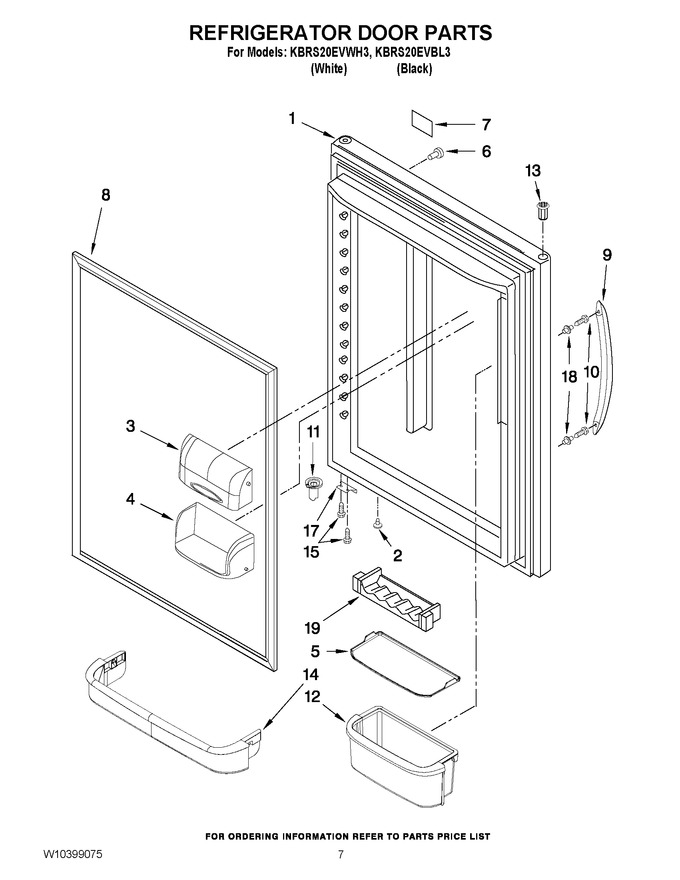

Diagram for KBRS20EVWH3
