SELECT A DIAGRAM
1 - Doors

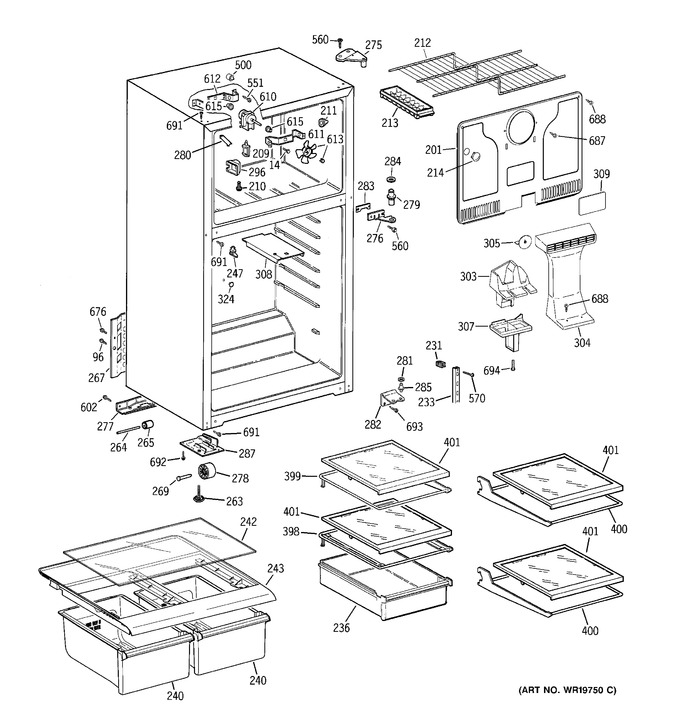

2 - Cabinet
3 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | WZ05X0164 | Scr Fan Mtr/brkt |
|
- | |||||
| 96 | WR1X2009 | Screw Asm |
|
- | |||||
| 201 | WR17X11887 | Cover Evap Asm |
|
- | |||||
| 209 | WR2X8243 | Support Twist Fz Shelf |
|
- | |||||
| 210 | WR2X8999 | Plug Button Mtg |
|
- | |||||
| 211 | WG03A00098 | Support Shlf (Replaces: WR2X8429) |
|
$ 4.20 | |||||
| 212 | WG03F01596 | Shlf Asm Fz (Replaces: WR71X2086) |
|
$ 154.18 | |||||
| 213 | WR30X311 | Tray Ice |
|
- | |||||
| 214 | WR02X11760 | Plug Button |
|
- | |||||
| 231 | WR2X7018 | Spacer Track |
|
- | |||||
| 233 | WR72X10174 | Track Cant Shelf |
|
- | |||||
| 236 | WG03L01477 | Pan Meat (Replaces: WR32X1448) |
|
$ 194.57 | |||||
| 240 | WG03L00653 | Pan Veg Twin Low (Replaces: WR32X10340) |
|
$ 156.16 | |||||
| 242 | WG03L01580 | Shelf Glass (Replaces: WR32X10482) |
|
$ 188.22 | |||||
| 243 | WG03L00621 | Cover Veg Pan (Replaces: WR17X11662) |
|
Immediately | $ 153.75 | ||||
| 247 | WR2X8242 | Support Twist Control |
|
- | |||||
| 263 | WG03F01630 | Glider Adj (Replaces: WR2X7877) |
|
$ 18.13 | |||||
| 264 | WG03F01631 | Axle Wheel Rear (Replaces: WR2X8214) |
|
$ 4.20 | |||||
| 265 | WG03L00759 | Wheel Mobility Rear (Replaces: WR2X8245) |
|
Immediately | $ 9.20 | ||||
| 267 | WR82X10084 | Cover Access |
|
- | |||||
| 269 | WR2X8949 | Axle Wheel Front |
|
- | |||||
| 275 | WG03L00753 | Hng Top/pin Wht (Replaces: WR13X10320) |
|
$ 52.61 | |||||
| 276 | WR13X10102 | Hinge Ctr & Shim Asm Wh |
|
- | |||||
| 277 | WR17X3188 | Rail Rear |
|
- | |||||
| 278 | WG03L00758 | Wheel, Front (Replaces: WR2X8244) |
|
$ 12.71 | |||||
| 279 | WR2X8232 | Pin Hinge Ctr |
|
- | |||||
| 280 | WG03L00745 | Cap Corner Oc Wh (Replaces: WR02X10703) |
|
$ 6.09 | |||||
| 281 | WG03L08792 | Washer Hinge Brown (Replaces: WR01X10146) |
|
Immediately | $ 3.97 | ||||
| 282 | WG03L00752 | Hinge Btm (Replaces: WR13X10315) |
|
$ 251.34 | |||||
| 283 | WR02X10511 | Shim Hinge Ctr |
|
- | |||||
| 284 | WG03A00237 | Spacer Door Fz (Replaces: WR1X1794) |
|
Immediately | $ 3.97 | ||||
| 285 | WG03L08909 | Pin Hinge Metal (Replaces: WR02X11749) |
|
$ 12.71 | |||||
| 287 | WR2X8708 | Gusset Rh |
|
- | |||||
| 287 | WR2X8709 | Gusset Lh |
|
- | |||||
| 296 | WR02X11123 | Cover Im Receptacle |
|
- | |||||
| 303 | WG03L01241 | Duct Foam (Replaces: WR02X12019) |
|
$ 30.18 | |||||
| 304 | WG03F01623 | Duct Air Fz (Replaces: WR17X11891) |
|
$ 90.06 | |||||
| 305 | WR02X12018 | Actuator Air |
|
- | |||||
| 307 | WR02X11793 | Diffuser Air Ff |
|
- | |||||
| 308 | WR2X8248 | Insul Elect |
|
- | |||||
| 309 | WR02X12020 | Gasket Air Duct |
|
- | |||||
| 324 | WG03F01629 | Plug Button Sm Wh (Replaces: WR2X7051) |
|
$ 4.78 | |||||
| 398 | WG03L01293 | Shlf Glass Frame M Pan (Replaces: WR71X10088) |
|
$ 76.77 | |||||
| 399 | WR71X10090 | Shelf Glass Frame Half |
|
- | |||||
| 400 | WG03L01294 | Shlf Cant Glass Half (Replaces: WR71X10089) |
|
$ 208.44 | |||||
| 401 | WR32X10125 | Shelf Encap Snap On |
|
- | |||||
| 500 | WR01A00163 | Bumper Lid (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 551 | WZ04X0244 | Scr 8-18 Ab Rndw 5/8 Ss |
|
- | |||||
| 560 | WR1X1249 | Screw |
|
- | |||||
| 570 | WR1X1757 | Scr 8-18 Hxw 1 1/4s |
|
- | |||||
| 602 | WR1X1591 | Screw |
|
- | |||||
| 610 | WG03F07855 | Motor Ac/dc Evap Fan (Replaces: WR60X10138) |
|
Immediately | $ 136.29 | ||||
| 611 | WR02X10516 | Brkt Evap Fan Frt |
|
- | |||||
| 612 | WG03A02567 | Brkt Evap Fan Rear (Replaces: WR02X10515) |
|
$ 19.06 | |||||
| 613 | WR60X10188 | Blade Evap Fan Asm |
|
- | |||||
| 615 | WR02X10519 | Grommet Evap Fan |
|
- | |||||
| 676 | WZ04X0263 | Scr 10-16 Ab Hxw 1/2 |
|
- | |||||
| 687 | WZ06X0096 | Scr 8-15 A Hx 1/2 S Ns |
|
- | |||||
| 688 | WR01X10448 | Scr 8-19 Hi/lo Trp 1 S |
|
- | |||||
| 691 | WR01A01036 | Scr 12-24 .7 (Replaces: WR1X1753) |
|
$ 3.97 | |||||
| 692 | WZ04X0416 | Scr 8-18 Ab Hxw 3/4 |
|
- | |||||
| 693 | WR1X1754 | Screw 12-24 |
|
- | |||||
| 694 | WR1X1792 | Screw |
|
- |
