SELECT A DIAGRAM

01 - Cabinet


02 - Freezer Door


03 - Shelf

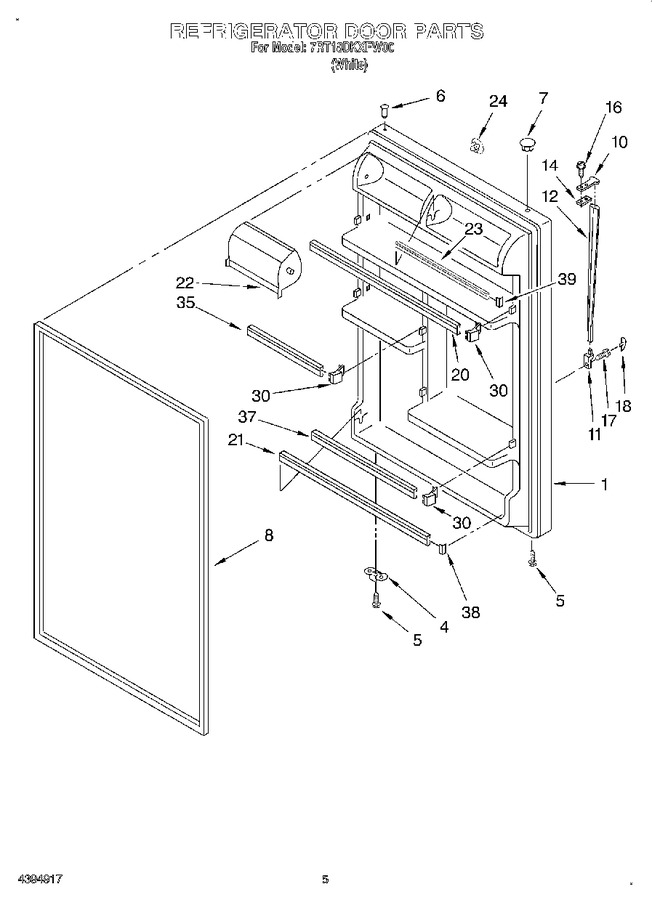

04 - Refrigerator Door


05 - Liner


06 - Unit, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183948		Refrigerator Door (includes No.6 & No.8) (white)		Appelez-nous	-
1	2183949		Refrigerator Door (includes No.6 & No.8) (almond)		Appelez-nous	-
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.75
6	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.80
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2159057		Door Gasket, Magnetic			Immediately	$ 164.66
10	819342		Handle End   (Replaces: 1108952)			Immediately	$ 47.96
11	819342		Handle End, Side   (Replaces: 2183140)			Immediately	$ 47.96
12	1109166		Handle, Center		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.49
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.79
18	WP1101634		Screw Cover   (Replaces: 1110059)				$ 9.22
20	2195365		Trim, Door Shelf		Appelez-nous	-
21	WPW10421484		Trim, Door Shelf   (Replaces: 2177260)				$ 129.76
22	WP2218113		Door, Compartment   (Replaces: 2171036)			Immediately	$ 50.33
23	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 118.40
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 7.40
24	2189008		Hole Plug, Handle (almond)		Appelez-nous	-
30	WP2195915		Endcap-trim (2)   (Replaces: 2195915)				$ 13.07
35	2195366		Trim, Door Shelf		Appelez-nous	-
37	WP2195943		Trim, Door Shelf   (Replaces: 2195367)				$ 87.41
38	WP2156006		Plug-trim (2)   (Replaces: 2156006)			Immediately	$ 12.18
39	WP2156007		Plug-trim (2)   (Replaces: 2156007)			Immediately	$ 7.65
100	2182569		Featurepak (includes 20,21, 22,23,30,35,37, 38,39) Also See Frz.dr. & Shelf Pgs.		Appelez-nous	-
