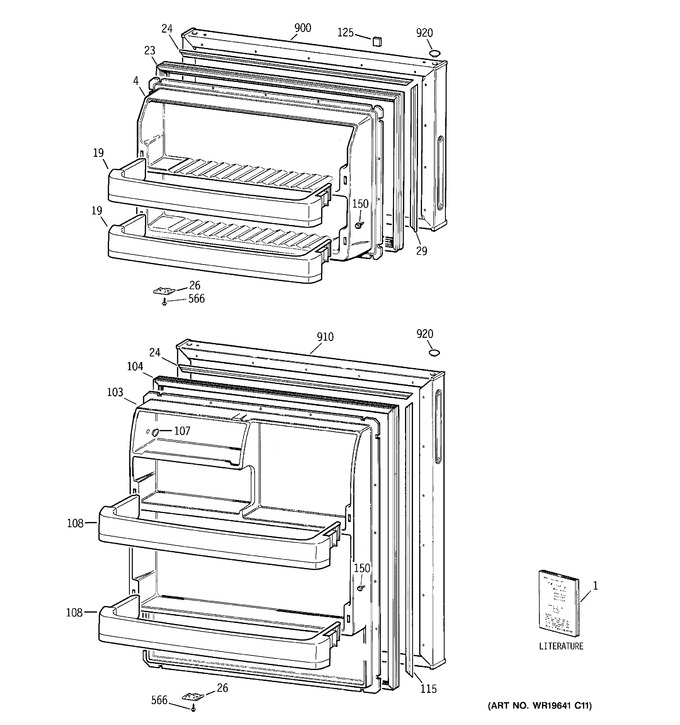

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-60318-1 | Pm Guide Owners |
|
- | |||||
| 1 | 31-51616 | Pm Mini Manual Wiring |
|
- | |||||
| 4 | WR77X10068 | Door Inner Fz |
|
- | |||||
| 19 | WG03F01622 | Shelf Fixed Fz (Replaces: WR17X11890) |
|
Immediately | $ 50.92 | ||||
| 23 | WG03L00640 | Gskt Door Fz (Replaces: WR24X10050) |
|
Immediately | $ 146.91 | ||||
| 24 | WR2X8235 | Retainer Strip H |
|
- | |||||
| 26 | WR02X10513 | Stop Door Ff/fz |
|
- | |||||
| 29 | WR2X8236 | Retainer Strip V |
|
- | |||||
| 103 | WR77X10067 | Door Inner Ff |
|
- | |||||
| 104 | WG03F00914 | Gasket Door Ff (Replaces: WR24X10049) |
|
Immediately | $ 155.77 | ||||
| 107 | WR2X7852 | Plug Button |
|
- | |||||
| 108 | WG03F01597 | Shelf Fixed Ff (Replaces: WR17X11889) |
|
Immediately | $ 66.22 | ||||
| 115 | WR2X8237 | Retainer Strip Vert |
|
- | |||||
| 125 | WR04X10142 | Lens Nameplate |
|
- | |||||
| 150 | WR1X1791 | Scr 8-15 Spec |
|
- | |||||
| 566 | WR1X1728 | Scr 10-16 1/2 Ph |
|
- | |||||
| 900 | WR78X10331 | Door Foam Asm Fz Wh |
|
- | |||||
| 910 | WR78X11203 | Door Asm Foam Ff |
|
- | |||||
| 920 | WR2X8233 | Plug Button Wh |
|
- |
