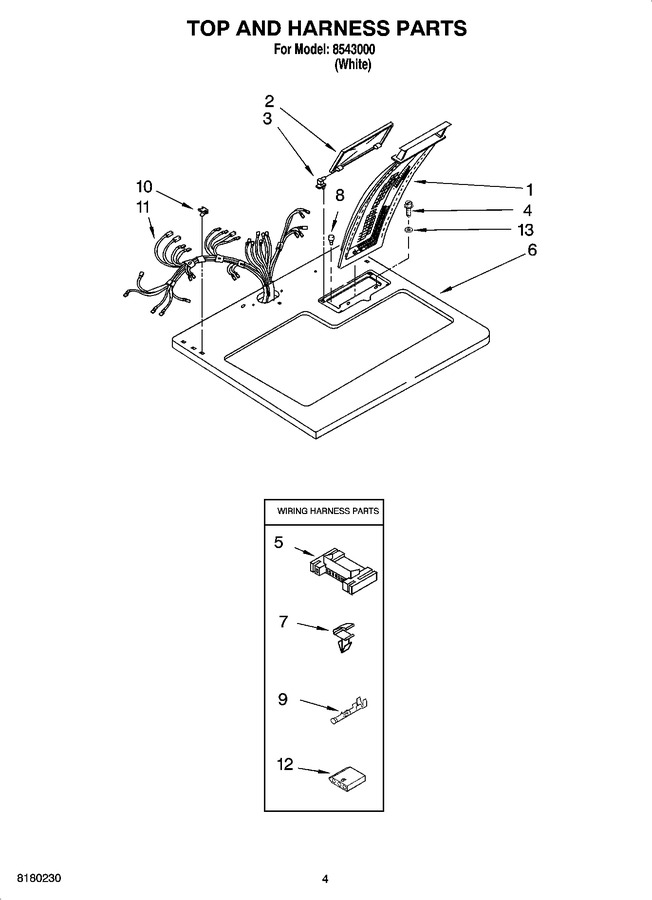

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Top, Harness Parts, And Optional Parts
03 - Bulkhead Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 2 | 8283378 | Cover, Lint Screen |
|
$ 44.80 | |||||
| 3 | WPW10044480 | Hinge, L.h. (Replaces: 3978606) |
|
$ 8.11 | |||||
| 3 | WPW10044470 | Hinge, R.h. (Replaces: 3978605) |
|
$ 8.11 | |||||
| 4 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 5 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 6 | 8274386 | Top |
|
- | |||||
| 7 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 8 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 9 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 10 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 11 | 8529859 | Harness, Wiring |
|
- | |||||
| 12 | 3936144 | Connector |
|
$ 21.22 | |||||
| 13 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 13 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 13 | 237446 | Washer |
|
- | |||||
| 13 | 4392065 | Kit, Dryer Repair (Replaces: 279948) |
|
Immediately | $ 53.85 | ||||
| 13 | W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 12.34 | |||||
| 13 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 13 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- |
