1 - Cabinet & Components

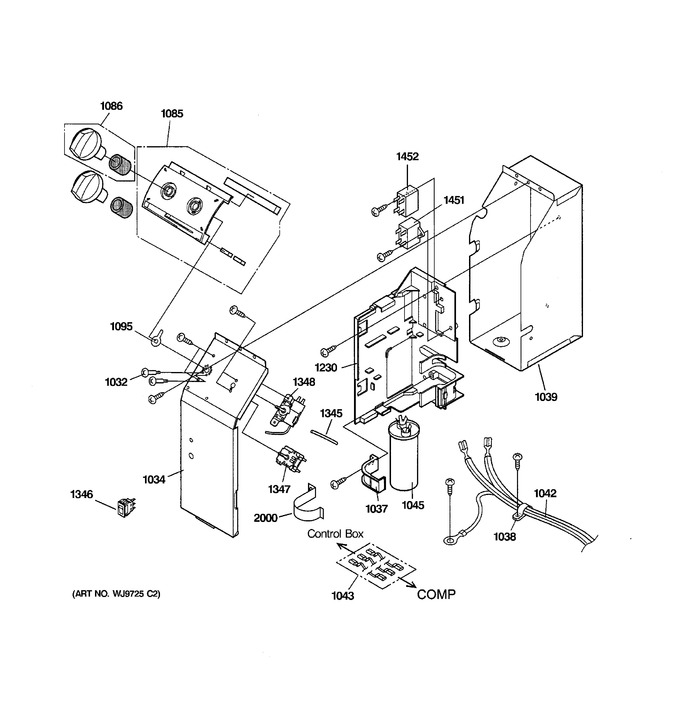

2 - Control Parts
3 - Sealed System Components
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1032 | WJ01X10032 | Special Screw |
|
- | |||||
| 1034 | WJ79X10061 | Control Box Cover |
|
- | |||||
| 1037 | WJ03X10027 | Capacitor Clamp |
|
- | |||||
| 1038 | WJ03X10006 | Wire Holder |
|
- | |||||
| 1039 | WJ76X10127 | Control Box |
|
- | |||||
| 1042 | WJ35X10007 | Power Supply Cord |
|
- | |||||
| 1043 | WJ27X10043 | Comp. Wiring |
|
- | |||||
| 1045 | WJ20X10008 | Running Capacitor |
|
- | |||||
| 1085 | WJ12X10047 | Knob Base-k |
|
- | |||||
| 1086 | WJ12X10048 | Control Knob Ass'y |
|
- | |||||
| 1095 | WJ28X10022 | Temp. Control Cover |
|
- | |||||
| 1230 | WJ01X10139 | Pwb Holder |
|
- | |||||
| 1345 | WJ40X10001 | Protect Tube |
|
- | |||||
| 1346 | WJ26X10039 | Fan Sw |
|
- | |||||
| 1347 | WJ26X10004 | Rotary Sw |
|
- | |||||
| 1348 | WJ28X10004 | Thermostat |
|
- | |||||
| 1451 | WP20X10005 | Od Fan Motor Capacitor |
|
- | |||||
| 1452 | WJ20X10017 | Id Fan Motor Capacitor |
|
- | |||||
| 2000 | WJ03X10037 | Clamp Holding |
|
- |
