SELECT A DIAGRAM
1 - Cabinet & Components

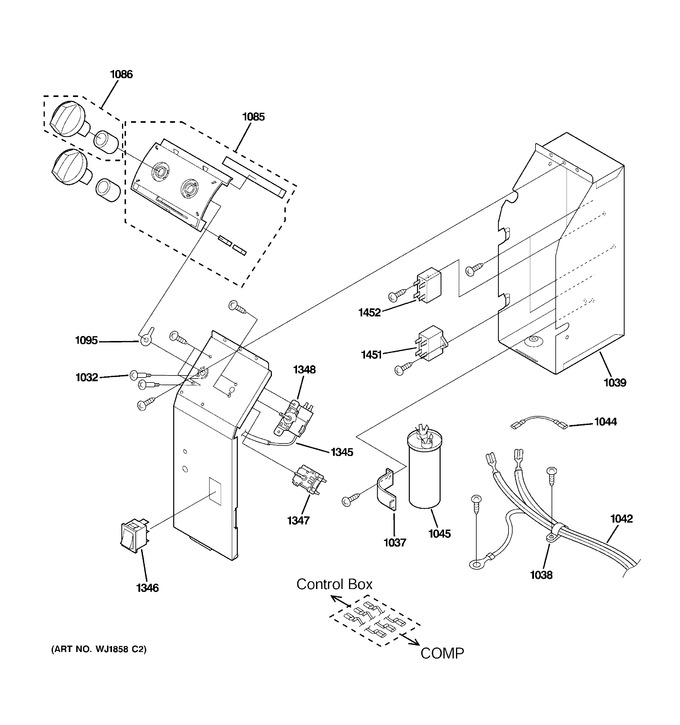

2 - Control Parts
3 - Sealed System & Components
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1032 | WJ01X10032 | Special Screw |
|
- | |||||
| 1037 | WJ03X10037 | Clamp Holding |
|
- | |||||
| 1038 | WJ03X10006 | Wire Holder |
|
- | |||||
| 1039 | WJ76X10232 | Control Box |
|
- | |||||
| 1042 | WJ35X10091 | Power Cord |
|
- | |||||
| 1044 | WJ37X10021 | Lead Wire |
|
- | |||||
| 1045 | WJ20X10110 | Run Capacitor |
|
- | |||||
| 1085 | WJ11X10017 | Knob Base |
|
- | |||||
| 1086 | WJ12X10072 | Control Knob Asm |
|
- | |||||
| 1095 | WJ28X10022 | Temp. Control Cover |
|
- | |||||
| 1345 | WJ40X10001 | Protect Tube |
|
- | |||||
| 1346 | WJ26X10151 | Fan Switch |
|
- | |||||
| 1347 | WJ26X10004 | Rotary Sw |
|
- | |||||
| 1348 | WJ27X10054 | Thermostat |
|
- | |||||
| 1451 | WJ20X10115 | Fan Mtr Capacitor |
|
- | |||||
| 1452 | WJ20X10116 | Fan Mtr Capacitor |
|
- |
